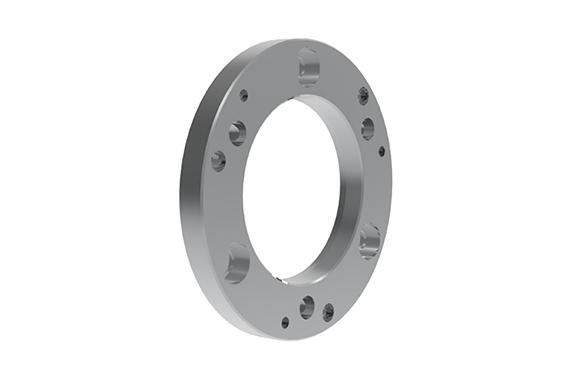

Kitagawa Back Plates Chuck Parts

Manufacturer: Kitagawa Corporation.
Model: Back plates

Back Plate Acceptable table

Model	Chuck Size	Spindle Nose
Model	Chuck Size	A2-5	A2-6	A2-8	A2-11	A2-15
BR BB200	6	CBB-06A05	CBB-06A06
	8	CBB-08A05	61P363755	CBB-08A08
	10		CB-10A06	CB-10A08
	12		61P393994	CB-15A08	61Q349363
B-200 QB300	6	CB-06A05	CB-06A06
	8	CB-08A05	CB-08A06	CB-08A08
	10		CB-10A06	CB-10A08	CB-10A1 1
	12			CB-10A08	CB-10A1 1
	15		61P393994	CB-15A08	CB-15A1 1	CB-15A15
B BS300	15		61P393994	CB-15A08	CB-15A1 1	CB-15A15
	18			CB-18A08	CB-18A1 1	CN-21A15
	21				CB-21A1 1	CB-21A15
	24				CB-21A1 1	CB-21A15
BS300	6	61P363754
	8	61P371952	61P363755
	10		61P363757	61P363756
BL200	6	CB-06A05	CB-06A06
	8		CB-08A06	CB-08A08
	10		CB-10A06	CB-10A08	CB-10A1 1
	12		CB-10A06	CB-10A08	CB-I0A1 1
QJR	7	CB-06A05	CB-06A06
	8	CB-08A05	CB-08A06	CB-08A08
	10		CB-10A06	CB-10A08	CB-1OA1 1
	12			CB-10A08	CB-10A1 1
BRT	6	CBBT06A05
	8	CBBT08A05	CBBT08A06
	10		CBT10A06	CBT10A08
	12			CBT15A08	61P836116
BT200	6	CBT06A05	CBT06A06
	8	CBT08A05	CBT08A06	CBT08A08
	10		CBT10A06	CBT10A08	CBT1OA11
	12		CBT10A06	CBT10A08	CBT10A11
BLT200	6	CBT06A05	CBT06A06
	8		CBT08A06	CBT08A08
	10		CBT10A06	CBT10A08	CBT10A11
	12			CBT10A08	CBT10A11
BBT200	6	CBBT06A05
	8	CBBT08A05	CBBT08A06
	10		CBT10A06	CBT10A08
	12			CBT15A08	61P836116
N	6	CB-06A05	CB-06A06
	8	CB-08A05	CB-08A06	61Q327856
	10		CN-10A06	CB-10A08	CB-10A1 1
	12		CN-10A06	CB-10A08	CB-1 OA 1 1
	15			CN-15A08	CB-15A1 1
	18			CN-15A08	CB-15A1 1	CB-21A15
	21			CN-2IA08	CN-21A1 1	CB-21A15
	24				CN-21A1 1
NL	6	CB-06A05	CB-06A06
	8		CB-08A06	CB-08A08
	10		CN-10A06	CB-10A08
	12		CN-10A06	CB-10A08	CB-10A1 1
	18			CN-15A08	CB-15A1 1
ML	6	CB-06A05	CB-06A06
ML	8	CB-08A05	CB-08A06	CB-08A08
NT	15			CBT15A08	CBT15A11
NLT	6	CBT06A05	CBT06A06
	8		CBT08A06	CBT08A08
	10		CNT10A06	CBT10A08	CBT10A11
	12		CNT10A06	CBT10A08	CBT10A11
MLT MLV	6	CBT06A05	CBT06A06
MLT MLV	8	CBT08A05	CBT08A06	CBT08A08
HW	8	61P342469	61Q341375	61Q382381
	10		61Q330007	61P344050
	12		61Q330007	61P344050
	15			61Q379169	61Q308602
