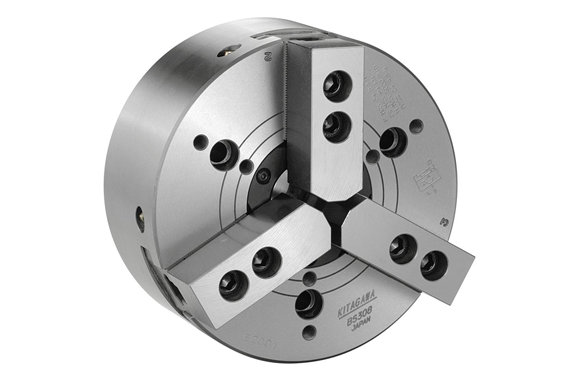

KITAGAWA BS300 series Standard Chuck
Made in Japan
Manufacturer: KITAGAWA
Model: BS300 series
Feature:
Reduced jaw lift by 30% because of side-wedge structure and case-carburized body
Compatible with B-200 series
*CE correspondence
Specification:
| Model | BS306 | BS308 | BS310 | ||
|---|---|---|---|---|---|
| Through-hole (mm) | 45 | 52 | 75 | ||
| Gripping Range (mm) | Max. | 169 | 210 | 254 | |
| Min. | 26 | 19 | 34 | ||
| Jaw Stroke (Diameter) (mm) | 5.5 | 7.5 | 9.1 | ||
| Plunger Stroke (mm) | 12 | 14 | 17 | ||
| Max. Draw Bar Pull Force (kN) | 22 | 34.8 | 43 | ||
| Max. Static Gripping Force (kN) | 55 | 84 | 105.8 | ||
| Max. Speed (min-1) | 6000 | 5000 | 4200 | ||
| Moment of Inertia (kg･m2) | 0.06 | 0.125 | 0.325 | ||
| Net Weight (kg) (with Soft Top Jaws) | 11.5 | 22.5 | 34.5 | ||
| Matching Cylinder | S1246 | S1552 | S1875 | ||
| Matching Soft Jaws Note) Jaw-mounting bolts are not included. | Standard Extra Tall | Standard Extra Tall | Standard Extra Tall | ||
| Matching Hard Jaws Note) Jaw-mounting bolts are not included. | HB06A1 HB06B1 | HB08B1 | HB10AA1 | ||
Note) The 3D data includes two types of the positions of the jaws for both Parasolid and STEP: open end (UC) and closed end (OC).
