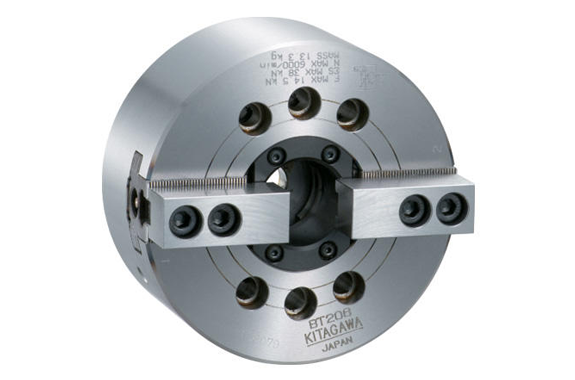

Kitagawa BT200 Series Standard Chuck
Manufacturer: Kitagawa Corporation.
Model: BT200 series
Feature:
For gripping irregular shaped components
*CE correspondence
Specification
The max. draw bar pull force and the max. static gripping force in the following specifications are for external diameter gripping.
When used for internal diameter gripping, the draw bar pull force must be less than half of the max. draw bar pull force.
| Model | BT204 | BT205 | BT206 | BT208 | BT210 | BT212 | ||
|---|---|---|---|---|---|---|---|---|
| Through-hole (mm) | 26 | 33 | 45 | 52 | 75 | 91 | ||
| Gripping Range (mm) | Max. | 110 | 135 | 169 | 210 | 254 | 304 | |
| Min. | 7 | 12 | 14 | 14 | 31 | 34 | ||
| Jaw Stroke (Diameter) (mm) | 5.4 | 5.4 | 5.5 | 7.4 | 8.8 | 10.6 | ||
| Plunger Stroke (mm) | 10 | 10 | 12 | 16 | 19 | 23 | ||
| Max. Draw Bar Pull Force (kN) | 9.3 | 11.7 | 14.5 | 23.2 | 28.5 | 36.7 | ||
| Max. Static Gripping Force (kN) | 19 | 24 | 38 | 57.3 | 74 | 96 | ||
| Max. Speed (min-1) | 8000 | 7000 | 6000 | 5000 | 4200 | 3300 | ||
| Moment of Inertia (kg･m2) | 0.006 | 0.017 | 0.056 | 0.165 | 0.308 | 0.7 | ||
| Net Weight (kg) (with Soft Top Jaws) | 3.8 | 6.5 | 11.5 | 21.3 | 33.5 | 52 | ||
| Matching Cylinder | F0933H | F0933H | S1246 | S1552 | S1875 | S2091 | ||
| Matching Soft Jaws Note) Jaw-mounting bolts are not included. | Standard | Standard | Standard | Standard Extra Tall | Standard Extra Tall | Standard | ||
Note: The 3D data includes two types of the positions of the jaws for both Parasolid and STEP: open end (UC) and closed end (OC).
