KITAGAWA CK(R) Series NC Rotary Table

Made in Japan

Manufacturer: Kitagawa

Model :CK(R) Series

Feature:

Ultra compact body and smallest footprint NC rotary table

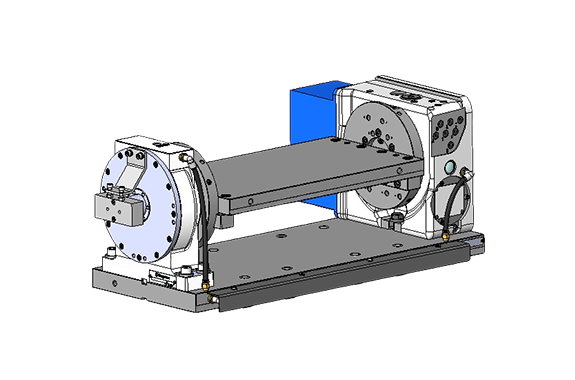

Suitable for using with trunnion jig

Block-less rotary joint (CKR160 and CKR200)

Suitable for small footprint machining centres

*CE correspondence

Specification

Model CK160 CKR160
Right-handed type
Left-handed type
Table Diameter (mm) ø114 ø114
Centre Hole Diameter (mm) ø65H7 ø65H7
Through Hole Diameter (mm) ø65
Centre Height (mm) 140 140
Clamping Method Pneumatic Pneumatic
Clamping Torque (N・m)
(at 0.5 MPa)
340 340
Motor Axis Reduction Inertia (kg・m2) 0.00009 0.00009
Servomotor (for Fanuc spec.) αiF 2/5000-B αiF 2/5000-B
Total Reduction Ratio 1/72 1/72
Max. Rotation Speed (min-1) 41.6
(at motor 3000min-1)
41.6
(at motor 3000min-1)
Allowable Work Inertia (kg・m2) 0.51 0.51
Indexing Accuracy (sec) 20 20
Repeatability (sec) 4 4
Mass of Product (kg) 40 41
Allowable Load Horizontal (kg) 160 160
Vertical (kg) 80 80
Tail Spindle (as an option) MSRC140/TSRC140
MSR142A/TSR142A
MSRC140/TSRC140
MSR142A/TSR142A
Rotary Joint (as an option) Hydraulic/Pneumatic 7 ports
Note 1)
