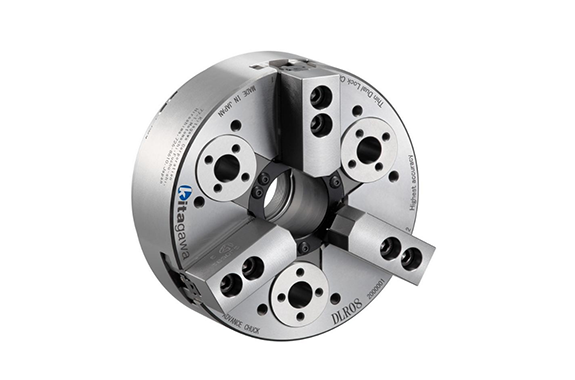

Kitagawa DLR Series Advanced Chuck
Manufacturer: Kitagawa Corporation.
Model: DLR Series
Feature
2-step gripping of parallel gripping and pull-lock gripping afterwards ensures workpiece seating without lifting
High gripping accuracy of 0.01mm T.I.R.
Lightweight and low inertia body
Thin body provides a wide processing area
Use high-speed rotation with a small gripping force to handle workpieces that are easily distorted, such as thin workpieces.
Adjust the pull-down amount while the chuck is attached to the lathe.
Use the Tnut-Plus as needed.
Dedicated for outer diameter gripping
*CE correspondence
Specifications
| Model | DLR08 | ||
|---|---|---|---|
| Through-hole (mm) | 52 | ||
| Gripping Range (at OD Gripping with Standard Soft Jaws) (mm) | Max. | 203 | |
| Min. | 19 | ||
| Jaw Stroke (Diameter) (mm) | 5.5 | ||
| Plunger Stroke (mm) | 12 | ||
| Max. Draw Bar Pull Force (kN) | 24 | ||
| Max. Static Gripping Force (kN) | 60 | ||
| Max. Speed (min-1) | 5000 | ||
| Dynamic Gripping Force at Max. Speed (kN) | 20 | ||
| Moment of Inertia (kg・m2) | 0.095 | ||
| Thickness (mm) | 87 | ||
| Net Weight (kg) (with Standard Soft Jaws) | 17.2 | ||
| Matching Cylinder | SR1453C SS1453K S1552 | ||
| Standard Soft Jaws | SJ06B1 | ||
| Tnut-Plus (Option) | TN06PLUS | ||
Note: The 3D data includes two types of the positions of the jaws for both Parasolid and STEP: open end (UC) and closed end (OC).
