Kitagawa F Series Rotary Cylinder
Manufacturer: Kitagawa Corporation.
Model: F series
Feature:
Built-in check valve and relief valve
*CE correspondence
*F-HP: Long piston stroke
*CE correspondence
Specification
| Model | F0933H | F2511H | |
|---|---|---|---|
| Though Hole Diameter (mm) | 33 | 117.5 | |
| Piston Stroke (mm) | 12 | 23 | |
| Piston Area (cm2) | Push Side | 58 | 348 |
| Pull Side | 55 | 336 | |
| Draw Bar Thrust (kN) | Push Side | 22.0 | 125.0 |
| Pull Side | 20.6 | 120.0 | |
| Max. Operation Pressure (MPa) | 4 | 4 | |
| Max. Speed (min-1) | 8000 | 2800 | |
| Moment of Inertia (kg･m2) | 0.008 | 0.445 | |
| Total Leakage (L/min) | 3.0 | 7.0 | |
| Net Weight (kg) | 8.5 | 60.0 | |

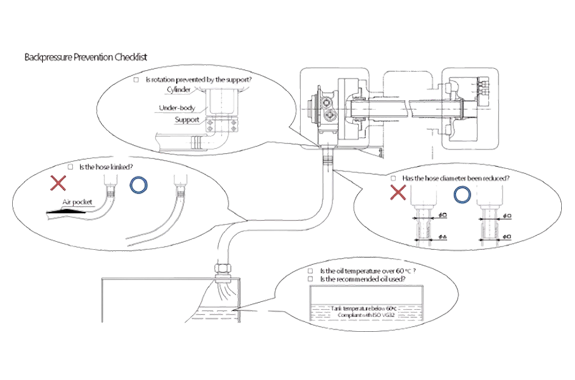

Please install the return piping so that backpressure does not occur, referring to the following checklist.
