Kitagawa Corporation.

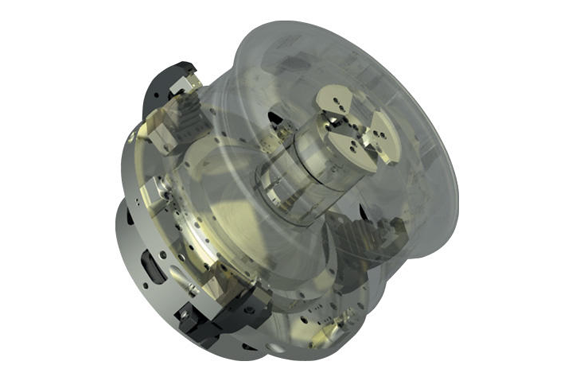

Kitagawa FG-V Series Advanced Chuck
Manufacturer: Kitagawa Corporation.
Model: FG-V series
Feature:
Rigid body
Specification:
| Model | FG50V | FG56V | FG62V | |
|---|---|---|---|---|
| Jaw Stroke Diameter (mm) | 35 | 35 | 35 | |
| Max. Draw Bar Pull Force (kN) | 30 | 30 | 30 | |
| Clamping Force per Jaw (kN) | 9.5 | 9.5 | 9.5 | |
| Max. Speed (min-1) | 2500 | 2500 | 2200 | |
| Moment of Inertia (kg･m2) | 3.75 | 5.8 | 8.8 | |
| Net Weight (kg) | 135 | 190 | 220 | |
| Matching Cylinder | YG312W16C | YG312W16C | YG312W16C | |
| Wheel Size (inch.) | 13～18 | 13～20 | 16～22.5 | |
