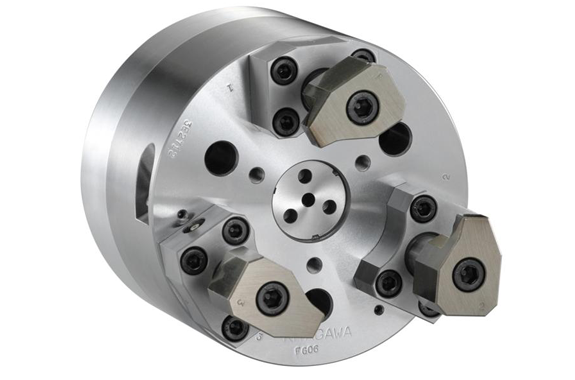

KITAGAWA FG(T) series Advanced Chuck
Made in Japan
Manufacturer: KITAGAWA
Model: FG(T) series
Feature:
Face clamping to reduce distortion, ideal for thin walled workpieces
Aluminium rear body for high speed rotation
Jaws include equalising mechanism to securely grip parts with variable thickness.
Through hole allows pneumatic accessories.
*CE correspondence
FG: 3-jaw type, FGT: 2-jaw type, The specifications in ( ) are for FGT.
Specification:
| Model | FG(T)05 | FG(T)06 | FG(T)08 | ||
|---|---|---|---|---|---|
| Clamping Stroke (mm) | 8 | 8 | 8 | ||
| Rotating Stroke (mm) | 12 | 12 | 12 | ||
| Plunger Stroke (mm) | 20 | 20 | 20 | ||
| Max. Draw Bar Pull Force (kN) | 7.5(5) | 9(6) | 18(12) | ||
| Clamping Force per Jaw (kN) | 2 | 2.5 | 5.5 | ||
| Max. Speed (min-1) | 4000 | 4000 | 3500 | ||
| Moment of Inertia (kg･m2) | 0.03(0.025) | 0.05(0.045) | 0.14(0.13) | ||
| Net Weight (kg) | 12(10) | 13(11) | 24(22) | ||
| Matching Cylinder (Standard) | Y1020R | Y1020R | Y1020R | ||
| Cylinder for seating confirmation | Y1020RE39 | Y1020RE39 | Y1020RE39 | ||
Note) Each 3D data includes two positions of the jaws for both Parasolid and STEP: extending end and retacting end.
| Model | FG(T)10 | FG(T)12 | ||
|---|---|---|---|---|
| Clamping Stroke (mm) | 8 | 8 | ||
| Rotating Stroke (mm) | 12 | 12 | ||
| Plunger Stroke (mm) | 20 | 20 | ||
| Max. Draw Bar Pull Force (kN) | 18(12) | 18(12) | ||
| Clamping Force per Jaw (kN) | 5.5 | 5.5 | ||
| Max. Speed (min-1) | 3500 | 3000 | ||
| Moment of Inertia (kg･m2) | 0.31(0.29) | 0.59(0.57) | ||
| Net Weight (kg) | 36(34) | 48(46) | ||
| Matching Cylinder (Standard) | Y1020R | Y1020R | ||
| Cylinder for seating confirmation | Y1020RE39 | Y1020RE39 | ||
Note) Each 3D data includes two positions of the jaws for both Parasolid and STEP: extending end and retacting end.
