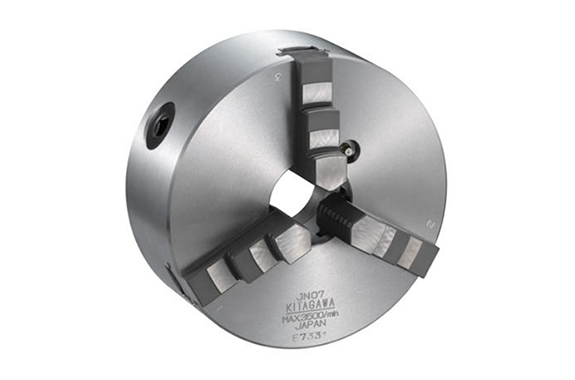

Kitagawa For Order Of Scroll Chuck Parts

Manufacturer: Kitagawa Corporation.

Feature:

Hard jaws for JN-SC
Gripping range
Chuck handles

Specifications

We use cast iron to manufacture the bodies of SC series chucks (3″, 4″, 5″, 14″, 16″).
We use steel to manufacture the bodies of JN / JN-T / JN-RA series chucks (12″–16″).
In the SC series, we grind the hard jaws together with the chuck to ensure precise tolerance fits.
Our team finishes the gripping faces concentrically in our shop.
In the JN series, we do not require tolerance fits, but we must grind the gripping face concentrically.
For base jaws in 2-piece jaw chucks (JN-T, JN-RA), tolerance fits are required—same as SC types.
Upon strong customer request, we supply individual parts. However, this may affect accuracy if jaws are not ground with the original chuck body.

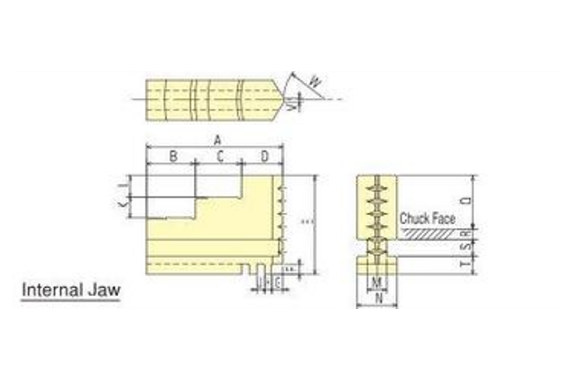

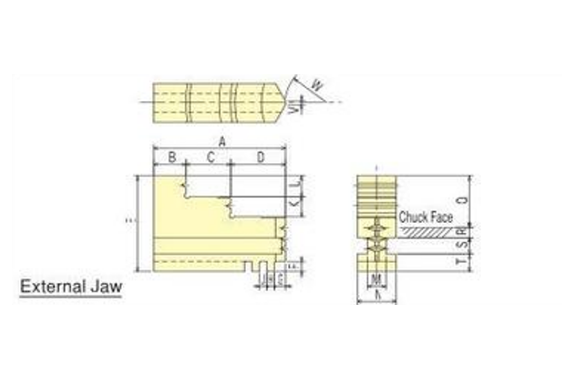

Hard Jaw (SC series)

JN series Jaw Dimensions

Model	A		B	C	D	E	F	G	H	J	K	L	M	N	Q	R	S	T	V	w
SC-3	Internal jaw	35	14	10	11	29	2.5	4	2.11	2.11	6	6	5.7	11	15	2.75	6.55	4.7	1	R 7.5
SC-3	External jaw	35	9	10	16	29	2.5	4	2.11	2.11	6	6	5.7	1 1	15	2.75	6.55	4.7	1	R 7.5
SC-4	Internal jaw	42	16	13	13	34.5	3.5	4.5	2.54	2.54	7	7	7.2	14	18	3.75	6.55	6.2	1.5	Rll
SC-4	External jaw	42	10	13	19	34.5	3.5	4.5	2.54	2.54	7	7	7.2	14	18	3.75	6.55	6.2	1.5	Rll
SC-5	Internal jaw	50	20	15	15	40	4	4	3.175	3.175	8	8	7.2	16	20	4.1	8.2	7.7	1.5	R15
SC-5	External jaw	50	14	15	21	40	4	4	3.175	3.175	8	8	7.2	16	20	4.1	8.2	7.7	1.5	R15
SC-14	Internal jaw	132	49	42	41	93.5	7	8	5.08	5.08	18	18	19	35	52	9.3	16.2	16	5	R47
SC-14	External jaw	132	40	41	51	93.5	7	8	5.08	5.08	18	18	19	35	52	9.3	16.2	16	5	R47
SC-16	Internal jaw	146	52	50	44	102	7	10.5	5.08	5.08	20	20	23	40	58	11.8	16.2	16	6	R53
SC-16	External jaw	146	43	50	53	102	7	10.5	5.08	5.08	20	20	23	40	58	11.8	16.2	16	6	R53

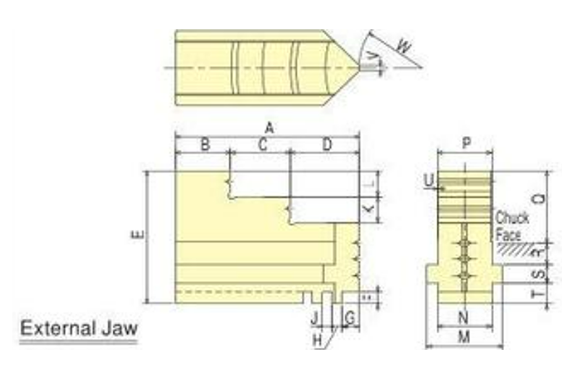

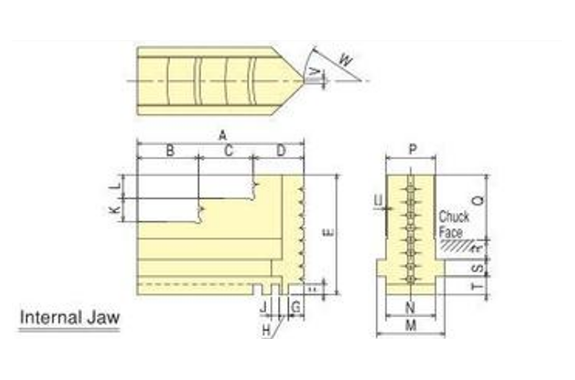

Hard Jaw (JN series)

JN series Jaw Dimensions

Model	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	U	V	W
JN06	Internal jaw 66	26.5	19	20.5	48.5	4.5	5.5	3.629	3.629	9	9	29	21	21	27	8	6.5	7	0.3	2	R19.5
JN06	External jaw 66	18	19	29	48.5	4.5	5.5	3.629	3.629	9	9	29	21	21	27	8	6.5	7	0.3	2	RI 9.5
JN07	Internal jaw 78	29	25.5	23.5	56.5	5	7	4.233	4.233	11	11	32	23	23	31	9	8	8.5	0.3	2	R27
JN07	External jaw 78	20.5	25.5	32	56.5	5	7	4.233	4233	1 1	11	32	23	23	31	9	8	8.5	0.3	2	R27
JN09	Internal jaw 88	34	28	26	62.5	5	7.5	4.233	4.233	13	13	38	27	27	33	10.5	9.5	9.5	0.3	3	R34.5
JN09	External jaw 88	24	28	36	62.5	5	7.5	4.233	4.233	13	13	38	27	27	33	10.5	9.5	9.5	0.3	3	R34.5
JN10	Internal jaw 98	36.5	32	29.5	66.5	5	7.5	4.233	4233	14	14	38	27	27	37	10.5	9.5	9.5	0.3	3	R42
JN10	External jaw 98	28	32	38	66.5	5	7.5	4.233	4.233	14	14	38	27	27	37	10.5	9.5	9.5	0.3	3	A42
JN12	Internal jaw 113	41.5	36.5	35	81	6	8	5.08	5.08	15	15	44	31	31	44	14.5	11	11	0.3	4	R42
JN12	External jaw 1 13	33	36.5	43.5	81	6	8	5.08	5.08	15	15	44	31	31	44	14.5	11	11	0.3	4	R42

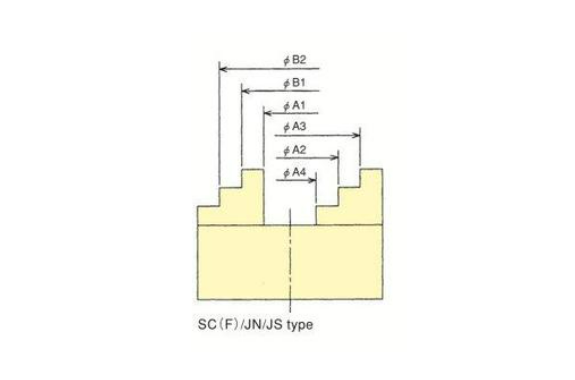

Gripping Range

Model	External gripping				Internal gripping
Model	A1	A2	A3	A4	B1	B2	Soft Jaw	Soft Jaw
SC-3(F)	2~35	33~55	53~70	2~35	24~44	42~64	(24~64)	(24~64)
SC-4(F)	3~44	38~61	65~95	3~44	29~57	53~84	(29~84)	(29~84)
SC-5(F)	3~46	44~77	71~100	3~46	33~67	60~93	(30~100)	(30~100)
JN06	3~64	48~112	110~160	3~160	55~104	102~155	50~150	50~150
JN06R	3~64	48~112	110~160	3~160	55~104	102~155	50~150	50~150
JN07	4~72	66~124	128~180	4~72	58~117	115~170	～170	～170
