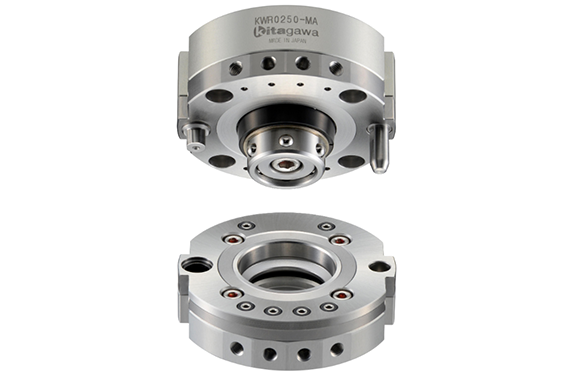

Kitagawa KWR Series Robot Accessory

Manufacturer: Kitagawa Corporation.
Model: KWR Series

Feature:

Light compact design
High precision position repeatability
Long life and high rigidity

How to order

Master Cylinder (Robot Side)
Model KWRY0010-M handles a payload of 3 kg.
Models KWR0070-M, KWR0120-M, KWR0250-M, and KWR0500-M handle payloads of 7 kg, 12 kg, 25 kg, and 50 kg respectively.

Tool Adapter (Gripper Side)
Model KWRY0010-T corresponds to the 3 kg payload.
Models KWR0070-T, KWR0120-T, KWR0250-T, and KWR0500-T correspond to payloads from 7 kg to 50 kg.

Payload at 0.5 MPa

001 = 3 kg
007 = 7 kg
012 = 12 kg
025 = 25 kg
050 = 50 kg

Port Option (Applicable to Master Cylinder Only)
Leave the field blank for no port
Use code F for a seat check port
Use code A for an air blow port

Port Option Availability Table

Port Option	3 kg	7 kg	12 kg	25 kg	50 kg
Blank	●
F		●	●	●	●
A		●	●	●	●

A filled circle indicates availability of the port option for the given payload.

Only the master cylinder supports port options.

Specifications

Model			KWRY0010	KWR0070	KWR0120	KWR0250	KWR0500
Payload^*1	at 0.5MPa	kg	3	7	12	25	50
Payload^*1	at 1MPa	kg	6	12	20	45	90
Repeatability		mm	0.003
Lift stroke (Detaching stroke)		mm	0.8	0.8	0.8	1.0	1.0
Cylinder capacity	Lock	cm³	0.64	1.50	2.38	6.08	14.38
Cylinder capacity	Release	cm³	0.72	1.72	2.69	6.68	15.39
Operationg air pressure	Max. pressure	MPa	1.0	1.0
	Min. pressure	MPa	0.4	0.35
	Withholding pressure	MPa	1.5	1.5
Holding force	at 0MPa^*2	kN	0.12	0.15	0.32	0.57	0.95
	at 0.35MPa	kN	–	0.68	1.14	2.31	4.44
	at 0.4MPa	kN	0.45	0.75	1.26	2.56	4.94
	at 0.5MPa	kN	0.50	0.90	1.50	3.05	5.94
	at 1MPa	kN	0.90	1.64	2.67	5.53	10.92
Lifting force (Detaching force)	at 0.35MPa	kN	0.03 (at 0.4MPa)	0.11	0.16	0.38	0.77
	at 0.5MPa	kN	0.08	0.20	0.30	0.68	1.34
	at 1MPa	kN	0.23	0.51	0.78	1.66	3.27
Allowable static moment^*1	Bending (at 0.5MPa)	N･m	5	14	27	74	194
	Bending (at 1.0MPa)	N･m	(10)	(25)	(45)	(135)	(350)
	Twisting	N･m	12	23	45	100	175
Max. load moment^*3	Bending (at 0.5MPa)	N･m	10	28	54	148	388
	Bending (at 1.0MPa)	N･m	(20)	(50)	(90)	(270)	(700)
	Twisting	N･m	24	46	90	200	350
Operating temperature		℃	0 ～ 70
Usable fluid			Dry air
Mass^*4	Master cylinder	g	85	180	250	500	1000
Mass^*4	Tool adapter	g	60	120	160	300	750
Number of air ports	Thread size x number of ports		M3 x 6 ports	M5 x 6 ports	M5 x 6 ports	M5 x 6 ports	M5 x 2 ports Rc1/8 x 4 ports

1 Please consider both the payload and allowable static moment when selecting the product.
2 It indicates holding force when air pressure becomes 0MPa after connecting and may not meet the specification.
Use the product within the Allowable Static Moment. Operating it at the Maximum Load Moment does not satisfy the specifications.
4 The mass of product is without options.
