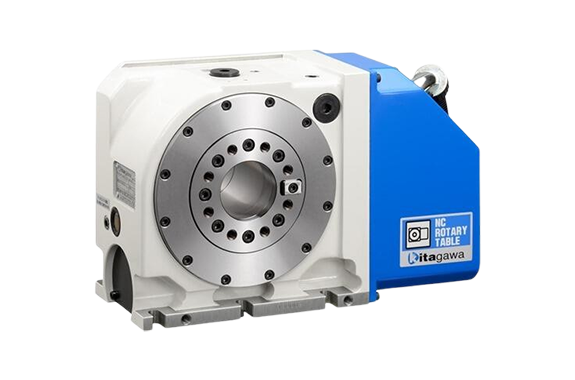

KITAGAWA MK Series NC Rotary Table

Made in Japan
Manufacturer: Kitagawa
Model: MK series

Feature:

Performance improved, Powerful clamping torque

Improved mounting, Reduced effective thickness and improved chip flow

Wide selection of rotary joints, Multi-purpose hole for automation, High-pressure rotary joints for fixture miniaturization and fast actuation

Specification

Model MK200R/L MK250R/L
Right-handed type
Left-handed type
Table diameter (mm) ø 135 ø 155
Centre hole diameter (mm) ø 65H7 ø 70H7
Through-hole diameter (mm) ø 70 ø 70
Centre Height (mm) 140 180
Clamping method Pneumatic Pneumatic
Clamping torque (N·m)
(at 0.5MPa)
570 1000
Motor axis reduced inertia
(kg·m2)
0.000095 0.00041
Servo motor (Fanuc spec.) αiF4/5000-B αiF4/5000-B
Total reduction ratio 1/90 1/90
Max. rotation speed (min-1)
(at motor 3000min– 1)
33.3 33.3
Allowable work inertia (kg·m2) 1.00 1.95
Indexing accuracy (sec) 20 20
Repeatability (sec) 4 4
Mass of product (kg) 60 95
Allowable load Horizontal (kg) 200 250
Vertical (kg) 100 125
Manual tailstock (Option) MR200RN MR250RN
Tail spindle (Option) MSRC140/MSR142A MSR181A
Rotary joint
(Option)
7MPa 4-port
25MPa 4-port
7MPa 5-port (Hyd./Pneu. 4 + Pneu. 1)
25MPa 6-port
25MPa 7-port (Hyd./Pneu. 6 + 1Note))
7MPa 4-port
25MPa 4-port
7MPa 5-port (Hyd./Pneu. 4 + Pneu. 1)
25MPa 6-port
25MPa 7-port (Hyd./Pneu. 6 + 1Note))
Model MK350
Right-handed Type MK350M MK350R
Left-handed Type MK350H MK350L
Table Diameter (mm) ø275
Faceplate (Option) ø350 screw hole spec., ø350 T-groove spec., ø400 T-groove spec.
Centre hole diameter (mm) ø160H7
Through-hole diameter (mm) ø160
Centre height (mm) 225
Clamping method Hydraulic
Clamping torque (N·m) 6000 (Pressure 3.5 MPa)
Kitagawa controler (Quinte) spec.
Total reduction ratio 1/90 1/120
Motor axis reduced inertia (kg·m2) 0.0018 0.00082
Max. rotation speed (min-1) 22.2
(at motor 2000min-1)
16.6
(at motor 2000min-1)
Mass of product (kg) 200 185
4th axis spec.
Total reduction ratio 1/90 1/120
Motor axis reduced inertia (kg·m2) 0.0017 0.0018 0.00081 0.0014
Servo motor
(Fanuc spec.)
αiF 8/3000-B αiF 12/4000-B αiF 8/3000-B αiF 12/4000-B
Max. rotation speed (min-1) 33.3
(at motor 3000min-1)
25.0
(at motor 3000min-1)
Mass of product (kg) 185 200 185 220
Common specifications
Allowable work inertia (kg·m2) 7.66
Indexing accuracy (sec) 20
Repeatability (sec) 4
Allowable load Horizontal (kg) 500
Vertical (kg) 250
Manual tailstock (Option) MR320RN
Tail spindle (Option) Hydraulic TSR181H45
Pneumatic TSR181A45
Rotary joint (Option) 7MPa 6 ports
7MPa 7 ports (Hyd./Pneu. 6+1Note))
7MPa 8 ports
25MPa 11 ports (Hyd./Pneu. 10+1Note))
7MPa 13 ports (Hyd./Pneu. 12+1Note))
7MPa 17 ports (Hyd./Pneu. 16+1Note))
