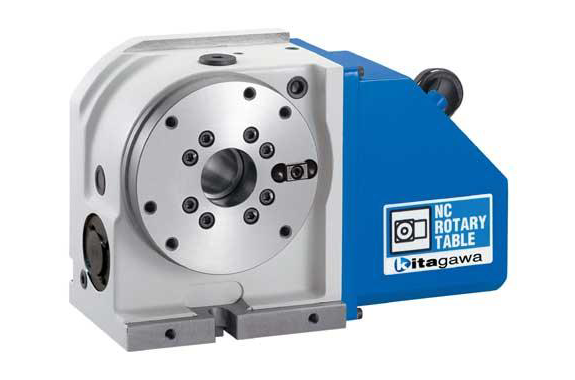

KITAGAWA MR Series NC Rotary Table

Made in Japan

Manufacturer: Kitagawa

Model: MR Series

Feature:

Compact design

Powerful pneumatic clamping torque by triple disk brake system

High speed rotation

High accuracy

Built-in rotary joint as option

Ideal for compact machining centres

*CE correspondence

Specification

Model MR120 MR160 MR200
Right-handed type
Left-handed type
Table Diameter (mm) ø128 ø165 ø202
Centre Hole Diameter (mm) ø50H7 ø50H7 ø65H7
Through Hole Diameter (mm) ø32 ø40 ø45
Centre Height (mm) 120 140 140
Clamping Method Pneumatic Pneumatic Pneumatic
Clamping Torque (N・m)
(at 0.5 MPa)
150 310 350
Motor Axis Reduced Inertia
(kg・m2)
0.00004 0.00008 0.00017
Servomotor (for Fanuc spec.) αiF 2/5000-B αiF 2/5000-B αiF 4/5000-B
Total Reduction Ratio 1/60 1/72 1/90
Max. Rotation Speed (min-1) 50
(at motor 3000min-1)
41.6
(at motor 3000min-1)
33.3
(at motor 3000min-1)
Allowable Work Inertia (kg・m2) 0.22 0.51 1.00
Indexing Accuracy (sec) 20 20 20
Repeatability (sec) 4 4 4
Mass of Product (kg) 33 41 61
Allowable Load Horizontal (kg) 120 160 200
Vertical (kg) 60 80 100
Manual Tailstock (as an option) MR120RN MR160RN MR200RN
Tail Spindle (as an option) TSR121A MSR142A/TSR142A MSR142A/TSR142A
Rotary Joint (as an option) RJ32-12Q04
Hydraulic/Pneumatic 3 ports
RJ40H16Q
Hydraulic/Pneumatic 4 ports
RJ40H20Q02
Hydraulic/Pneumatic 4 ports
Model MR250 MR320
Right-handed type
Left-handed type
Table Diameter (mm) ø250 ø320
Centre Hole Diameter (mm) ø100H7 ø130H7
Through Hole Diameter (mm) ø70 ø105
Centre Height (mm) 180 225
Clamping Method Pneumatic Pneumatic
Clamping Torque (N・m)
(at 0.5 MPa)
600 1200
Motor Axis Reduced Inertia (kg・m2) 0.00031 0.00031
Servomotor (for Fanuc spec.) αiF 4/5000-B αiF 8/3000-B
Total Reduction Ratio 1/90 1/120
Max. Rotation Speed
(min-1)
4th axis spec.
(Fanuc spec.)
33.3
(at motor 3000min-1)
25
(at motor 3000min-1)
M signal spec. 33.3
(at motor 3000min-1)
16.6
(at motor 2000min-1)
Allowable Work Inertia (kg・m2) 1.95 4.49
Indexing Accuracy (sec) 20 20
Repeatability (sec) 4 4
Mass of Product (kg) 85 130
Allowable Load Horizontal (kg) 250 350
Vertical (kg) 125 180
Manual Tailstock (as an option) MR250RN MR320RN
Tail Spindle (as an option) MSR181A/TSR181A TSR181A45
Rotary Joint (as an option) RJ70H25Q02
Hydraulic/Pneumatic 6 ports
RJ70H32Q01
Hydraulic/Pneumatic 6 ports
