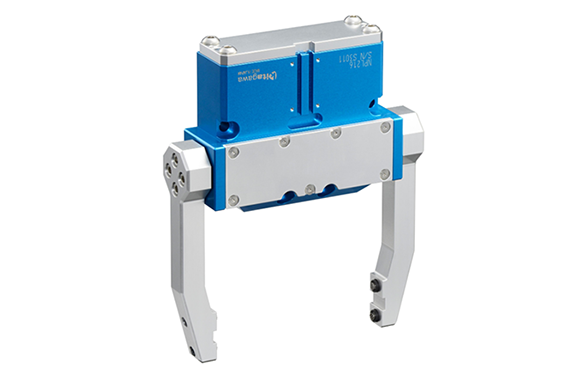

Kitagawa NPL Series Robot Accessory
Manufacturer: Kitagawa Corporation.
Model: NPL Series
Feature:
Actively withstands harsh environments such as chips, dust, and coolant (IP67 rated).
High ID gripping force enables transportation of heavy workpieces
Realizes dust and water resistance without air purging
Also available with measurement function
How to order
Size: 16
NBR seal
Thin 2-jaw sealed gripper
Note:
Please install a check valve in the air-pressure circuit so that the gripper will not release a workpiece even if the air pressure drops down.
When the jaw stroke is detected by the reed switches, mount the reed switches in the grooves along the outer periphery of the product. Active switching supported.
Specifications
| Model | Jaw stroke in diameter (mm) | Gripping Force F(Note 2) | Repeatability (mm) | Mass (kg) | Air Consumption per reciprocating (cm3) | Air Pressure (MPa) | Operating Temperature (℃) | Protective class | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Measurement Distance L (mm) | OD Gripping (N) | ID Gripping (N) | ||||||||
| NPL216 | 37 | 60 | 1080 | 2080 | ±0.008 | 2.5 | 163.8 | 0.2～0.6 | 5～60 | IP67 |
Note:
The measurement distance is the distance from the master jaw centre to the gripping centre.
Value at supply air pressure 0.6 MPa.
