Kitagawa S Series Rotary Cylinder
Manufacturer: Kitagawa Corporation.
Model: S series
Feature:
Kitagawa standard through-hole type
Compact and light weight
Built-in check valve and relief valve
*CE correspondence
Specification
| Model | S1246 | S1552 | S1875 | S2091 | |
|---|---|---|---|---|---|
| Though-hole Diameter (mm) | 46 | 52 | 75 | 91 | |
| Piston Stroke (mm) | 15 | 22 | 25 | 30 | |
| Piston Area (cm2) | Push Side | 100 | 161 | 198 | 252 |
| Pull Side | 89 | 150 | 183 | 234 | |
| Draw Bar Thrust (kN) | Push Side | 38 | 60 | 74 | 94 |
| Pull Side | 33 | 56 | 69 | 88 | |
| Max. Operation Pressure (MPa) | 4 | 4 | 4 | 4 | |
| Max. Speed (min-1) | 7000 | 6200 | 4700 | 3800 | |
| Moment of Inertia (kg･m2) | 0.019 | 0.053 | 0.095 | 0.153 | |
| Total Leakage (L/min) | 3.0 | 3.9 | 4.2 | 4.5 | |
| Net Weight (kg) | 12.0 | 16.8 | 26.0 | 33.0 | |

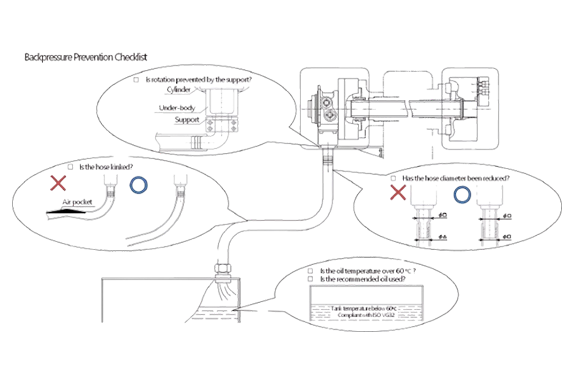

Please install the return piping so that backpressure does not occur, referring to the following checklist. Click on the image to enlarge it.
