KITAGAWA SR series Rotary Cylinder

Made in Japan

Manufacturer: Kitagawa

Model: SR series

Feature:

Large through-hole

Linear sensor mountable (optional)

Compatible with SS cylinder

*CE correspondence

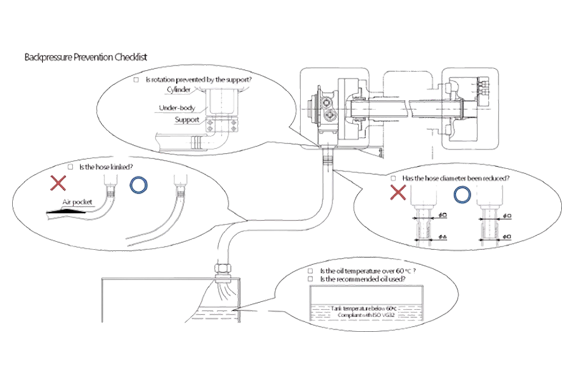

Specification

Model SR1146C SR1453C SR1566C
Though Hole Diameter (mm) 46 53 66
Piston Stroke (mm) 16 19 22
Piston Area (cm2) Push Side 87 121 132
Pull Side 76 111 120
Draw Bar Thrust (kN) Push Side 32.8 47.9 49.7
Pull Side 28.6 43.9 45.0
Max. Operation Pressure (MPa) 4.0 4.2 4.0
Max. Speed (min-1) 6000 6000 5000
Moment of Inertia (kg・m2) 0.026 0.043 0.066
Total Leakage (L/min) 3.0 3.9 4.0
Net Weight (kg) 12 15 21
Model SR1677C SR1781C SR2010C
Though-hole Diameter (mm) 77 81 106
Piston Stroke (mm) 23 25 28
Piston Area (cm2) Push Side 150 171 201
Pull Side 135 156 191
Draw Bar Thrust (kN) Push Side 56.4 64.3 75.5
Pull Side 50.7 58.7 71.8
Max. Operation Pressure (MPa) 4.0 4.0 4.0
Max. Speed (min-1) 4500 4500 3500
Moment of Inertia (kg・m2) 0.084 0.096 0.196
Total Leakage (L/min) 4.3 4.3 6.0
Net Weight (kg) 25 26 40
