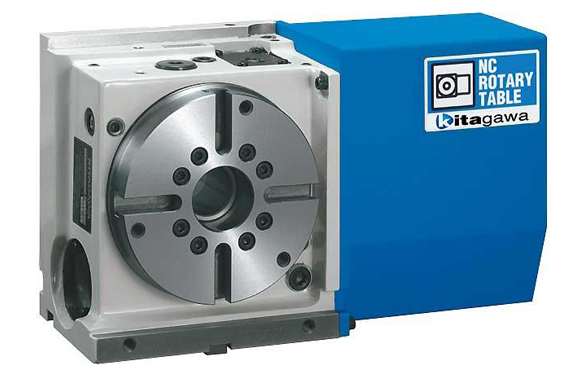

KITAGAWA TMX Series NC Rotary Table

Made in Japan

Manufacturer: Kitagawa

Model: TMX Series

Feature:

High accuracy

Built-in air-hydraulic booster provides high clamping torque.

Air-hydraulic booster or direct hydraulic clamping option available.

Built-in rotary joint available

Can be used vertically and horizontally

Rotary scale can be fitted to further increase accuracy.

*CE correspondence

Specification

Model TMX160 TMX200 TMX250
Right-handed Type
Left-handed Type ×
Table Diameter (mm) ø165 ø200 ø250
Centre Hole Diameter (mm) ø50H7 ø75H7 ø105H7
Through Hole Diameter (mm) ø40 ø52 ø78
Centre Height (mm) 120 140 180
Clamping Method Hydraulic/
Pneumatic
Hydraulic/
Pneumatic
Hydraulic/
Pneumatic
Clamping Torque (N・m)
(at Pneumatic0.5MPa/Hydraulic3.5MPa)
450 600 1100
Motor Axis Reduced Inertia (kg・m2) 0.00012 0.00032 0.00056
Total Reduction Ratio 1/72 1/90 1/90
Max. Rotation Speed
(min-1)
41.6
(at motor 3000min-1)
33.3
(at motor 3000min-1)
33.3
(at motor 3000min-1)
Allowable Work Inertia (kg・m2) 0.51 1.00 1.95
Indexing Accuracy (sec) 20 20 20
Repeatability (sec) 4 4 4
Mass of Product (kg) 56 60 101
Allowable Load Horizontal (kg) 160 200 250
Vertical (kg) 80 100 125
Manual Tailstock (as an option) TS160RN TS200RN TS250RN
Tail Spindle (as an option) TSR121A MSR142A/TSR142A

TSR142H

MSR181A/TSR181A

TSR181H

Rotary Joint (as an option) RJ40H16D01
Hydraulic/Pneumatic 4 ports
RJ40H20D03
Hydraulic/Pneumatic 4 ports
RJ70H25D05
Hydraulic/Pneumatic 6 ports
