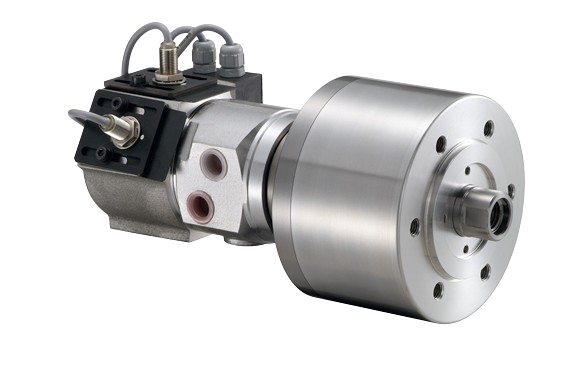

Kitagawa Y-RE Series Rotary Cylinder
Manufacturer: Kitagawa Corporation.
Model: Y-RE Series
Feature:
Built-in check valve and relief valve
You can attach proximity switches as an optional feature.
You can also install stroke detection sensors for enhanced safety.
*CE correspondence
Specification
| Model | Y0715RE01C | Y1020RE47 | Y1225RE47 | Y1530RE47 | Y2035RE47 | |
|---|---|---|---|---|---|---|
| Piston Stroke (mm) | – | – | – | – | – | |
| Piston Stroke (mm) | 15 | 20 | 25 | 30 | 35 | |
| Piston Area (cm2) | Push Side | 42 | 84 | 120 | 174 | 312 |
| Pull Side | 37 | 79 | 113 | 160 | 290 | |
| Draw Bar Thrust (kN) | Push Side | 15.9 | 31 | 45 | 65 | 117 |
| Pull Side | 13.9 | 29 | 42 | 60 | 108 | |
| Max. Operation Pressure (MPa) | 4 | 4 | 4 | 4 | 4 | |
| Max. Speed (min-1) | 6000 | 6000 | 6000 | 5500 | 5500 | |
| Moment of Inertia (kg･m2) | 0.003 | 0.013 | 0.023 | 0.048 | 0.098 | |
| Total Leakage (L/min) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
| Net Weight (kg) | 4.5 | 7.6 | 10.5 | 14 | 22.5 | |

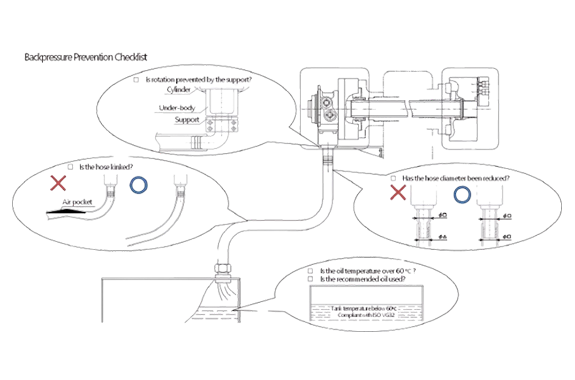

Please install the return piping so that backpressure does not occur, referring to the following checklist.
