Kitagawa YW-R Series Rotary Cylinder
Manufacturer: Kitagawa Corporation.
Model: YW-R series
Feature:
Best suited for HW series chucks
YW-R: Built-in check valve and pressure relief valve
YW-RE: Built-in check valve, pressure relief valve and proximity switches
*CE correspondence (YW-RE only)
*Values in ( ) are of YW-RE types.
Specification
| Model | YW1220R(E) | YW1225R(E) | ||
|---|---|---|---|---|
| Piston Stroke (mm) | 20 | 25 | ||
| Piston Area (cm2) | Push Side | 126(123) | 126(123) | |
| Pull Side | 113 | 113 | ||
| Draw Bar Thrust (kN) | Push Side | 33(32) | 33(32) | |
| Pull Side | 31 | 31 | ||
| Max. Operation Pressure (MPa) | 3 | 3 | ||
| Max. Speed (min-1) | 5000 | 5000 | ||
| Moment of Inertia (kg･m2) | 0.043(0.044) | 0.044(0.045) | ||
| Total Leakage (L/min) | 0.7 | 0.7 | ||
| Net Weight (kg) | 15.3(16.3) | 15.5(16.5) | ||

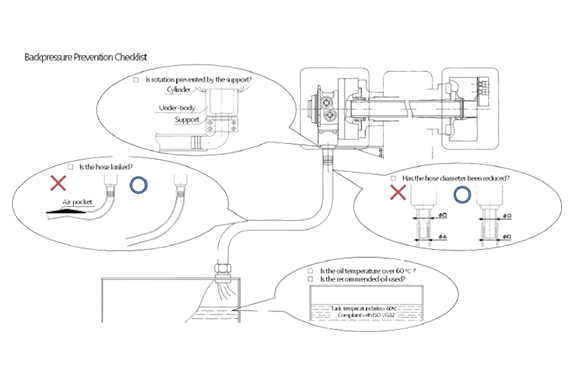

Please install the return piping so that backpressure does not occur, referring to the following checklist.
