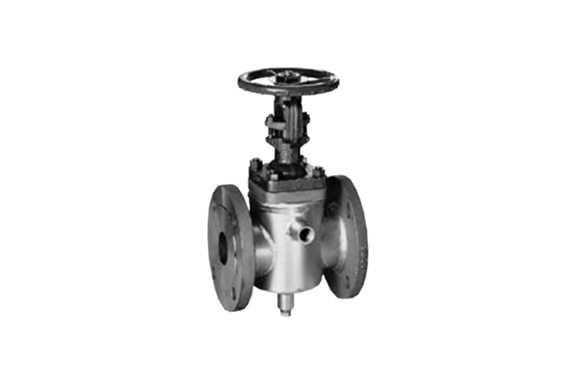

Kitz 10UMAJ, 10UMAJM Stainless & High Alloy 10K Full Jacketed Gate Valve
Manufacturer: Kitz
Model: 10UMAJ, 10UMAJM
Structure
Materials
| Parts | 10UMAJ | 10UMAJM |
|---|---|---|
| Body | SCS13A | SCS14A |
| Bonnet | SCS13A | SCS14A |
| Stem | 304SS | 316SS |
| Disc | SCS13A | SCS14A |
| Gland | 304SS | 316SS |
| Gland flange | Stainless steel | |
| Gland packing | Refer to Page 10 | |
| Gasket | Refer to Page 10 | |
| Yoke sleeve | Ductile Ni-resist | |
| Handwheel | Ductile iron | |
| Gland bolt/nut | Stainless steel | |
| Gland bolt pin | Stainless steel | |
| Bonnet bolt/nut | B8/8 | |
| Name plate | Aluminum | |
| Jacket* | Carbon steel | |
*The material may be changed depending on the service temperature.
Note:
- Body seats and/or disc seats can be optionally hard-faced.
- Flexible wedge for all sizes
| Items | |
|---|---|
| Face to face dimensions | KITZ Std. |
| End flange dimensions | JIS B2220 10K |
| Wall thickness | ASME B16.34 Class 150 |
Dimensions
| Nominal Size | ½×1½ | ¾×1½ | 1×2 | 1½×2½ | 2×3 | 3×4 | 4×6 | 6×8 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15×40 | 20×40 | 25×50 | 40×65 | 50×80 | 80×100 | 100×150 | 150×200 | |||||||||
| L | 169 | 169 | 177 | 188 | 201 | 217 | 260 | 279 | ||||||||
| H (open) | 210 | 221 | 240 | 293 | 343 | 444 | 523 | 711 | ||||||||
| D | 100 | 100 | 100 | 140 | 160 | 200 | 225 | 250 | ||||||||
| P | Rc½ | Rc½ | Rc½ | Rc½ | Rc½ | Rc½ | Rc¾ | Rc¾ | ||||||||
*The nominal sizes are indicated by [the valve nominal sizes] and [flange nominal sizes].
