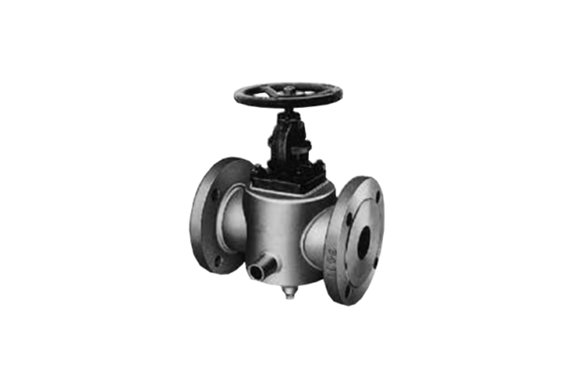

Kitz 10UPAJ, 10UPAJM Stainless & High Alloy 10K Jacketed Globe Valve
Manufacturer: Kitz
Model: 10UPAJ, 10UPAJM
Structure
Materials
| Parts | 10UPAJ | 10UPAJM | |
|---|---|---|---|
| Body | SCS13A | SCS14A | |
| Bonnet | SCS13A | SCS14A | |
| Stem | 304SS | 316SS | |
| Disc | 15×40 to 50×80 80×100 & 100×150 | 304SS SCS13A | 316SS SCS14A |
| Lock nut | 15×40 to 40×65 80×100 to 100×150 | 304SS SCS13A | 316SS SCS14A |
| Gland | 304SS | 316SS | |
| Gland flange | Stainless steel | ||
| Gland packing | Refer to Page 10 | ||
| Gasket | Refer to Page 10 | ||
| Yoke bush | Ductile Ni-resist | ||
| Handwheel | Ductile iron | ||
| Gland bolt/nut | Stainless steel | ||
| Gland bolt pin | Stainless steel | ||
| Bonnet bolt/nut | B8/8 | ||
| Name plate | Aluminum | ||
| Jacket* | Carbon steel | ||
*The material may be changed depending on the service temperature.
Note: Body seats and/or disc seats can be optionally hard-faced.
| Items | |
|---|---|
| Face to face dimensions | KITZ Std. |
| End flange dimensions | JIS B2220 10K |
| Wall thickness | ASME B16.34 Class 150 |
Dimensions
| Nominal Size | ½×1½ | ¾×1½ | 1×2 | 1½×2½ | 2×3 | 3×4 | 4×6 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15×40 | 20×40 | 25×50 | 40×65 | 50×80 | 80×100 | 100×150 | ||||||||
| L | 156 | 156 | 190 | 214 | 239 | 280 | 349 | |||||||
| H (open) | 184 | 182 | 185 | 234 | 237 | 294 | 325 | |||||||
| D | 100 | 100 | 100 | 160 | 160 | 200 | 225 | |||||||
| P | Rc½ | Rc½ | Rc½ | Rc½ | Rc½ | Rc¾ | Rc¾ | |||||||
*The nominal sizes are indicated by [the valve nominal sizes] and [flange nominal sizes].
