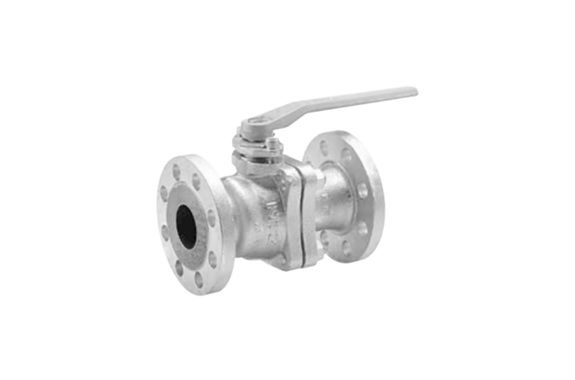

Kitz 20STLB Floating 20K Ball Valve for Gas Service (Full Bore)
Manufacturer: Kitz
Model: 20STLB
Structure
Materials
| Parts | JIS Material |
|---|---|
| Body | FCD-S |
| Body cap | FCD-S |
| Stem | SUS 403 |
| Ball | SUS 304 / SCS 13A |
| Gland | FCD-S |
| Gland packing | PTFE |
| Gasket | PTFE |
| Packing washer | SUS 304 (NPS 1¼ & smaller) |
| Ball seat | HYPHTITE® PTFE |
| O-ring | NBR |
| Cap bolt/nut | Carbon steel |
| Stopper | SUS 430 |
| Snap ring | SK5 |
Dimensions
| Nominal Size | NPS | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 4 | 6 | 8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | |
| L | 140 | 152 | 165 | 178 | 190 | 216 | 241 | 283 | 305 | 403 | 502 | |
| H | 106 | 109 | 130 | 135 | 115 | 120 | 153 | 162 | 241 | 293 | 352 | |
| D | 130 | 130 | 160 | 160 | 230 | 230 | 400 | 400 | 750 | 1000 | 1000 | |
