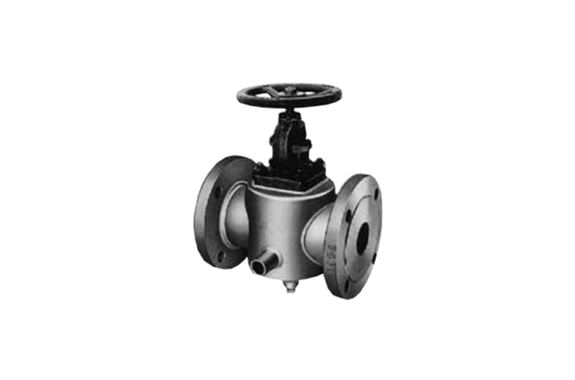

Kitz 20UPAJ, 20UPAJM Stainless & High Alloy 20K Jacketed Globe Valve
Manufacturer: Kitz
Model: 20UPAJ, 20UPAJM
Structure
Materials
| Parts | 20UPAJ | 20UPAJM | |
|---|---|---|---|
| Body | SCS13A | SCS14A | |
| Bonnet | SCS13A | SCS14A | |
| Stem | 304SS | 316SS | |
| Disc | 15×40 to 40×65 50×80 to 100×150 | 304SS (1/2 to 11/2) SCS13A (2 to 4) | 316SS (1/2 to 11/2) SCS14A (2 to 4) |
| Lock nut | 15×40 to 40×65 50×80 to 100×150 | 304SS SCS13A | 316SS SCS14A |
| Gland | 304SS | 316SS | |
| Gland flange | Stainless steel | ||
| Gland packing | Refer to Page 10 | ||
| Gasket | Refer to Page 10 | ||
| Yoke bush | Ductile Ni-resist | ||
| Handwheel | Ductile iron | ||
| Gland bolt/nut | Stainless steel | ||
| Gland bolt pin | Stainless steel | ||
| Bonnet bolt/nut | B8/8 | ||
| Name plate | Aluminum | ||
| Jacket* | Carbon steel | ||
*The material may be changed depending on the service temperature.
Note: Body seats and/or disc seats can be optionally hard-faced.
| Items | |
|---|---|
| Face to face dimensions | KITZ Std. |
| End flange dimensions | JIS B2220 20K |
| Wall thickness | ASME B16.34 Class 300 |
Dimensions
| Nominal Size | ½×1½ | ¾×1½ | 1×2 | 1½×2½ | 2×3 | 3×4 | 4×6 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15×40 | 20×40 | 25×50 | 40×65 | 50×80 | 80×100 | 100×150 | ||||||||
| L | 160 | 160 | 194 | 218 | 254 | 302 | 339 | |||||||
| H (open) | 184 | 182 | 185 | 234 | 286 | 341 | 396 | |||||||
| D | 100 | 100 | 100 | 160 | 180 | 250 | 300 | |||||||
| P | Rc½ | Rc½ | Rc½ | Rc½ | Rc½ | Rc¾ | Rc¾ | |||||||
*The nominal sizes are indicated by [the valve nominal sizes] and [flange nominal sizes].
