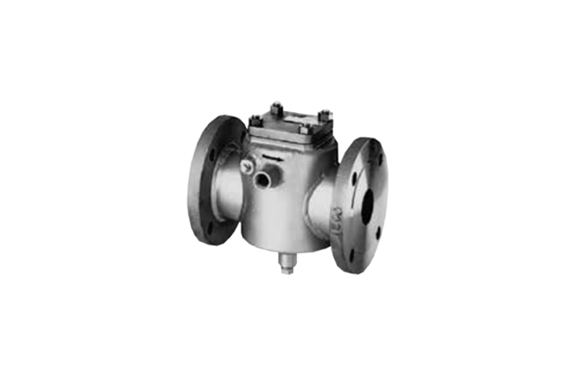

Kitz 300UOAJ, 300UOAJM Stainless & High Alloy Class 300 Jacketed Swing Check Valve
Manufacturer: Kitz
Model: 300UOAJ, 300UOAJM
Structure
Materials
| Parts | 300UOAJ | 300UOAJM |
|---|---|---|
| Body | CF8 | CF8M |
| Cover | CF8 | CF8M |
| Disc | CF8 | CF8M |
| Gasket | Refer to Page 10 | |
| Hinge pin | 304SS | 316SS |
| Plug | 304SS | 316SS |
| Cover bolt/nut | B8/8 | |
| Split pin | 316LSS | |
| Jacket* | Carbon steel | |
*The material may be changed depending on the service temperature.
Note: Body seats and/or disc seats can be optionally hard-faced.
| Items | |
|---|---|
| Face to face dimensions | KITZ Std. |
| End flange dimensions | ASME B16.5 Class 300 |
| Wall thickness | ASME B16.34 Class 300 |
Dimensions
| Nominal Size | 2×3 | 3×4 | 4×6 | 6×8 | |||||
|---|---|---|---|---|---|---|---|---|---|
| 50×80 | 80×100 | 100×150 | 150×200 | ||||||
| L | in. | 10.5 | 13.0 | 15.7 | 17.5 | ||||
| mm | 267 | 330 | 400 | 444 | |||||
| H | in. | 5.91 | 7.05 | 7.99 | 10.24 | ||||
| mm | 150 | 179 | 203 | 260 | |||||
| P | Rc½ | Rc½ | Rc¾ | Rc¾ | |||||
*The nominal sizes are indicated by [the valve nominal sizes] and [flange nominal sizes].
