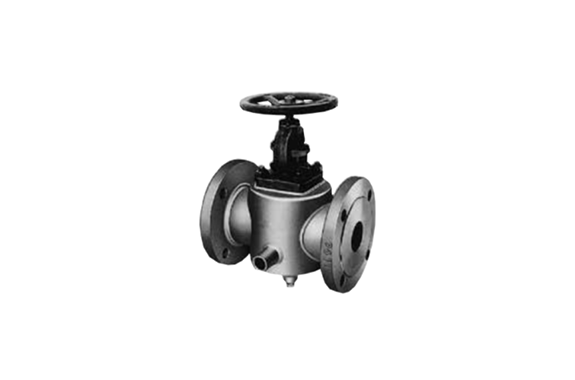

Kitz 300UPAJ, 300UPAJM Stainless & High Alloy Class 300 Jacketed Globe Valve
Manufacturer: Kitz
Model: 300UPAJ, 300UPAJM
Structure
Materials
| Parts | 300UPAJ | 300UPAJM | |
|---|---|---|---|
| Body | CF8 | CF8M | |
| Bonnet | CF8 | CF8M | |
| Stem | 304SS | 316SS | |
| Disc | 1/2×11/2 to 2×3 3×4 & 4×6 | 304SS CF8 | 316SS CF8M |
| Lock nut | 1/2×11/2 to 11/2×21/2 2×3 to 4×6 | 304SS CF8 | 316SS CF8M |
| Gland | 304SS | 316SS | |
| Gland flange | Stainless steel | ||
| Gland packing | Refer to Page 10 | ||
| Gasket | Refer to Page 10 | ||
| Yoke bush | Ductile Ni-resist | ||
| Handwheel | Ductile iron | ||
| Gland bolt/nut | Stainless steel | ||
| Gland bolt pin | Stainless steel | ||
| Bonnet bolt/nut | B8/8 | ||
| Name plate | Aluminum | ||
| Jacket* | Carbon steel | ||
*The material may be changed depending on the service temperature.
Note: Body seats and/or disc seats can be optionally hard-faced.
| Items | |
|---|---|
| Face to face dimensions | KITZ Std. |
| End flange dimensions | ASME B16.5 Class 300 |
| Wall thickness | ASME B16.34 Class 300 |
Dimensions
| Nominal Size | ½×1½ | ¾×1½ | 1×2 | 1½×2½ | 2×3 | 3×4 | 4×6 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15×40 | 20×40 | 25×50 | 40×65 | 50×80 | 80×100 | 100×150 | |||||||||
| L | in. | 6.50 | 6.50 | 7.99 | 9.02 | 12.5 | 14.0 | 15.59 | |||||||
| mm | 165 | 165 | 203 | 229 | 318 | 356 | 396 | ||||||||
| H (open) | in. | 7.24 | 7.17 | 7.28 | 9.21 | 11.26 | 13.43 | 15.59 | |||||||
| mm | 184 | 182 | 185 | 234 | 286 | 341 | 396 | ||||||||
| D | in. | 3.94 | 3.94 | 3.94 | 6.30 | 7.09 | 9.84 | 11.8 | |||||||
| mm | 100 | 100 | 100 | 160 | 180 | 250 | 300 | ||||||||
| P | Rc½ | Rc½ | Rc½ | Rc½ | Rc½ | Rc¾ | Rc¾ | ||||||||
*The nominal sizes are indicated by [the valve nominal sizes] and [flange nominal sizes].
