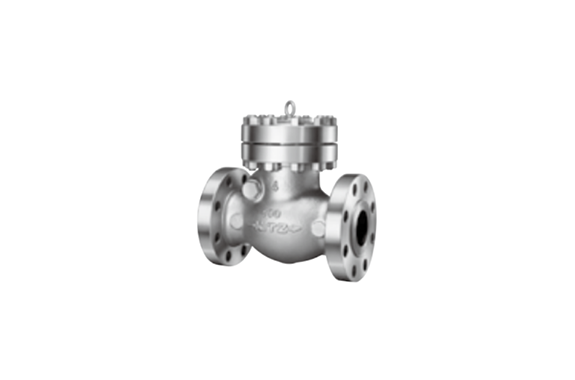

Kitz 900UOC, 900UOCM, 900UOCHM Stainless & High Alloy Class 900 Swing Check Valve
Manufacturer: Kitz
Model: 900UOC, 900UOCM, 900UOCHM
Structure
Materials
| Parts | 900UOC | 900UOCM |
|---|---|---|
| Body* | CF8 | CF8M |
| Cover | CF8 | CF8M |
| Disc | CF8 | CF8M |
| Disc nut | 304SS | 316SS |
| Gasket | Refer to Page 10 | |
| Hinge pin | 304SS | 316SS |
| Arm | CF8 | CF8M |
| Cover bolt/nut | B8/8 | |
| Plug | 304SS | 316SS |
| Name plate | Stainless steel | |
*Body seats and/or disc seats can be optionally hard-faced.
Note: All integral seats
| Items | |
|---|---|
| Face to face dimensions | ASME B16.10 Class 900 |
| End flange dimensions | ASME B16.5 Class 900 |
| Wall thickness | API 600 Class 900 |
Dimensions
| Nominal Size | 3 | 4 | 6 | 8 | |
|---|---|---|---|---|---|
| 80 | 100 | 150 | 200 | ||
| L | in. | 15.0 | 18.0 | 24.0 | 29.0 |
| mm | 381 | 457 | 610 | 737 | |
| H | in. | 11.58 | 13.7 | 17.36 | 20.75 |
| mm | 294 | 348 | 441 | 527 | |
