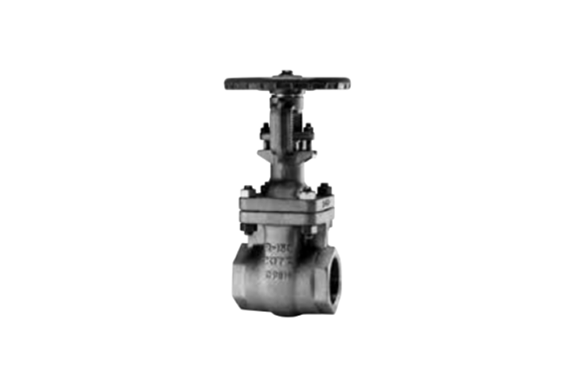

Kitz AK150UMM, AW150UMM Stainless & High Alloy Class 150 Gate Valve
Manufacturer: Kitz
Model: AK150UMM, AW150UMM
Structure
Materials
| Parts | Material | Parts | Material |
|---|---|---|---|
| Body | CF3M | Handwheel | Ductile iron |
| Bonnet | CF8M | Gasket | Refer to Page 10 |
| Stem | 316SS | Bonnet bolt/nut | B8/8 |
| Disc | CF8M | Gland bolt/nut | Stainless steel |
| Gland | 316SS | Yoke sleeve | Ductile Ni-resist |
| Gland packing | Refer to Page 10 | Name plate | Aluminum |
| Gland flange | Stainless steel |
Note: Flexible wedge for all sizes
| End to end: | KITZ Std. |
|---|---|
| Connecting threads: | ASME B1.20.1 |
| Connecting sockets: | ASME B16.11 |
| Wall thickness: | ASME B16.34 Class 150 |
Dimensions
| AK150UMM | AW150UMM | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 1/2 | 3/4 | 1 | 1½ | 2 | 1/2 | 3/4 | 1 | 1½ | 2 | |
| 15 | 20 | 25 | 40 | 50 | 15 | 20 | 25 | 40 | 50 | ||
| L | in. | 2.76 | 2.99 | 3.50 | 4.49 | 4.76 | 2.64 | 2.87 | 3.39 | 4.37 | 4.65 |
| mm | 70 | 76 | 89 | 114 | 121 | 67 | 73 | 86 | 111 | 118 | |
| H (open) | in. | 7.76 | 8.03 | 8.66 | 10.9 | 13.2 | 7.76 | 8.03 | 8.66 | 10.9 | 13.2 |
| mm | 197 | 204 | 220 | 276 | 336 | 197 | 204 | 220 | 276 | 336 | |
| D | in. | 3.54 | 3.54 | 3.94 | 5.51 | 6.30 | 3.54 | 3.54 | 3.94 | 5.51 | 6.30 |
| mm | 90 | 90 | 100 | 140 | 160 | 90 | 90 | 100 | 140 | 160 | |
