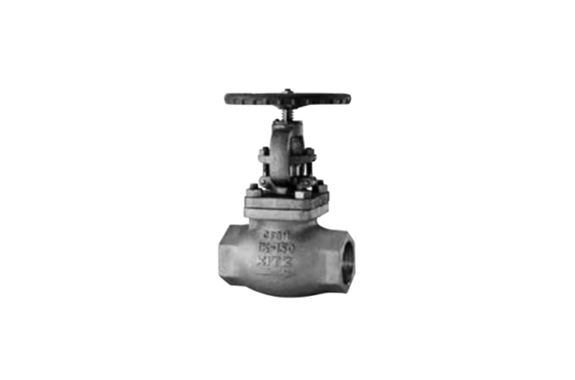

Kitz AK150UPM, AW150UPM Stainless & High Alloy Class 150 Globe Valve
Manufacturer: Kitz
Model: AK150UPM, AW150UPM
Structure
Materials
| Parts | Material | Parts | Material |
|---|---|---|---|
| Body | CF3M | Gasket | Refer to Page 10 |
| Bonnet | CF8M | Gland flange | Stainless steel |
| Stem | 316SS | Bonnet bolt/nut | B8/8 |
| Disc | 316SS | Gland bolt/nut | Stainless steel |
| Gland | 316SS | Yoke bush | Ductile Ni-resist |
| Gland packing | Refer to Page 10 | Name plate | Aluminum |
| Handwheel | Ductile iron |
| End flange dimensions: | KITZ Std. |
|---|---|
| Connecting threads: | ASME B1.20.1 |
| Connecting sockets: | ASME B16.11 |
| Wall thickness: | ASME B16.34 Class 150 |
Dimensions
| Nominal Size | AK150UPM | AW150UPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ½ | ¾ | 1 | 1½ | 2 | ½ | ¾ | 1 | 1½ | 2 | ||
| 15 | 20 | 25 | 40 | 50 | 15 | 20 | 25 | 40 | 50 | ||
| L | in. | 3.39 | 3.74 | 4.25 | 5.51 | 6.50 | 3.27 | 3.62 | 4.13 | 5.39 | 6.38 |
| mm | 86 | 95 | 108 | 140 | 165 | 83 | 92 | 105 | 137 | 162 | |
| H (open) | in. | 6.46 | 6.54 | 6.65 | 7.80 | 8.98 | 6.46 | 6.54 | 6.65 | 7.80 | 8.98 |
| mm | 164 | 166 | 169 | 198 | 228 | 164 | 166 | 169 | 198 | 228 | |
| D | in. | 3.54 | 3.54 | 3.94 | 5.51 | 6.30 | 3.54 | 3.54 | 3.94 | 5.51 | 6.30 |
| mm | 90 | 90 | 100 | 140 | 160 | 90 | 90 | 100 | 140 | 160 | |
