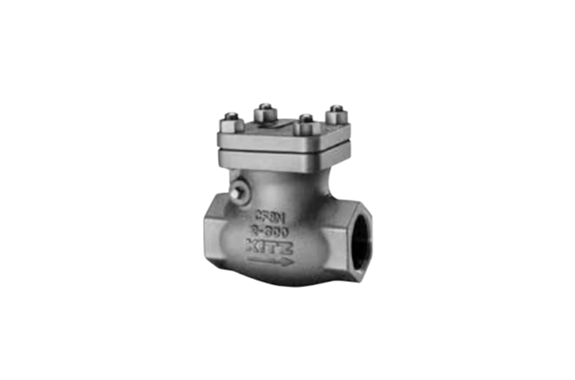

Kitz AK300UOM, AW300UOM Stainless & High Alloy Class 300 Swing Check Valve
Manufacturer: Kitz
Model: AK300UOM, AW300UOM
Structure
Materials
| Parts | Material | Parts | Material |
|---|---|---|---|
| Body | CF8M | Plug | 316SS |
| Cover | CF8M | Gasket | Refer to Page 10 |
| Disc | CF8M | Cover bolt/nut | B8/8 |
| Hinge pin | 316SS | Name plate | Aluminum |
| End to end: | KITZ Std. |
|---|---|
| Connecting threads: | ASME B1.20.1 |
| Connecting sockets: | ASME B16.11 |
| Wall thickness: | ASME B16.34 Class 300 |
Dimensions
| Nominal Size | AK300UOM | AW300UOM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ½ | ¾ | 1 | 1½ | 2 | ½ | ¾ | 1 | 1½ | 2 | ||
| 15 | 20 | 25 | 40 | 50 | 15 | 20 | 25 | 40 | 50 | ||
| L | in. | 4.49 | 5.00 | 5.51 | 5.98 | 6.50 | 4.37 | 4.88 | 5.39 | 5.87 | 6.38 |
| mm | 114 | 127 | 140 | 152 | 165 | 111 | 124 | 137 | 149 | 162 | |
| H | in. | 3.19 | 3.43 | 3.58 | 4.61 | 5.47 | 3.19 | 3.43 | 3.58 | 4.61 | 5.47 |
| mm | 81 | 87 | 91 | 117 | 139 | 81 | 87 | 91 | 117 | 139 | |
