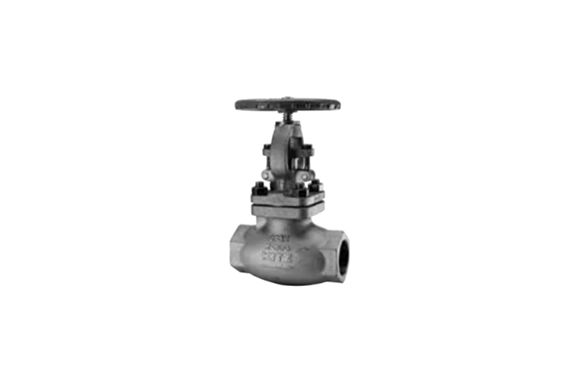

Kitz AK300UPM, AW300UPM Stainless & High Alloy Class 300 Globe Valve
Manufacturer: Kitz
Model: AK300UPM, AW300UPM
Structure
Materials
| Parts | Material | Parts | Material |
|---|---|---|---|
| Body | CF3M | Handwheel | Ductile iron |
| Bonnet | CF8M | Gasket | Refer to Page 10 |
| Stem | 316SS | Bonnet bolt/nut | B8/8 |
| Disc | 316SS (1/2 to 11/2) / CF8M (2) | Gland bolt/nut | Stainless steel |
| Gland | 316SS | Yoke bush | Ductile Ni-resist |
| Gland packing | Refer to Page 10 | Name plate | Aluminum |
| Gland flange | Stainless steel |
| End flange dimensions: | KITZ Std. |
|---|---|
| Connecting threads: | ASME B1.20.1 |
| Connecting sockets: | ASME B16.11 |
| Wall thickness: | ASME B16.34 Class 300 |
Dimensions
| Nominal Size | AK300UPM | AW300UPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ½ | ¾ | 1 | 1½ | 2 | ½ | ¾ | 1 | 1½ | 2 | ||
| 15 | 20 | 25 | 40 | 50 | 15 | 20 | 25 | 40 | 50 | ||
| L | in. | 3.74 | 4.25 | 5.00 | 6.50 | 7.48 | 3.62 | 4.13 | 4.88 | 6.38 | 7.36 |
| mm | 95 | 108 | 127 | 165 | 190 | 92 | 105 | 124 | 162 | 187 | |
| H (open) | in. | 7.24 | 7.17 | 7.28 | 9.17 | 11.38 | 7.24 | 7.17 | 7.28 | 9.17 | 11.4 |
| mm | 184 | 182 | 185 | 233 | 289 | 184 | 182 | 185 | 233 | 289 | |
| D | in. | 3.94 | 3.94 | 3.94 | 6.30 | 7.09 | 3.94 | 3.94 | 3.94 | 6.30 | 7.09 |
| mm | 100 | 100 | 100 | 160 | 180 | 100 | 100 | 100 | 160 | 180 | |
