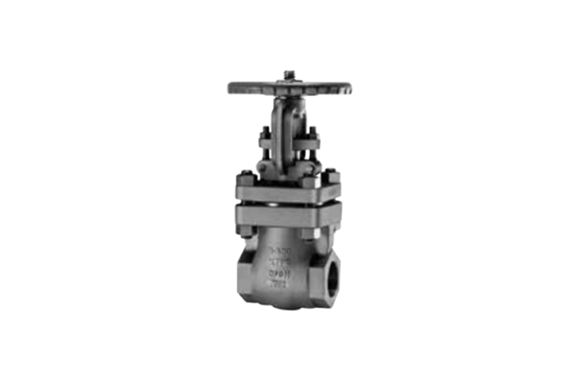

Kitz AK600UMM, AW600UMM Stainless & High Alloy Class 600 Gate Valve
Manufacturer: Kitz
Model: AK600UMM, AW600UMM
Structure
Materials
| Parts | Material | Parts | Material |
|---|---|---|---|
| Body | CF3M | Handwheel | Ductile iron |
| Bonnet | CF8M | Gasket | Refer to Page 10 |
| Stem | 316SS | Bonnet bolt/nut | B8/8 |
| Disc | CF8M | Gland bolt/nut | Stainless steel |
| Gland | 316SS | Yoke sleeve | Ductile Ni-resist |
| Gland packing | Refer to Page 10 | Name plate | Aluminum |
| Gland flange | Stainless steel |
Note: Flexible wedge for all sizes
| End to end: | KITZ Std. |
|---|---|
| Connecting threads: | ASME B1.20.1 |
| Connecting sockets: | ASME B16.11 |
| Wall thickness: | ASME B16.34 Class 600 |
Dimensions
| AK600UMM | AW600UMM | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 1/2 | 3/4 | 1 | 1½ | 2 | 1/2 | 3/4 | 1 | 1½ | 2 | |
| 15 | 20 | 25 | 40 | 50 | 15 | 20 | 25 | 40 | 50 | ||
| L | in. | 2.99 | 3.27 | 3.74 | 5.00 | 5.75 | 2.87 | 3.15 | 3.62 | 4.88 | 5.63 |
| mm | 76 | 83 | 95 | 127 | 146 | 73 | 80 | 92 | 124 | 143 | |
| H (open) | in. | 7.91 | 8.46 | 9.45 | 12.8 | 15.2 | 7.91 | 8.46 | 9.45 | 12.8 | 15.2 |
| mm | 201 | 215 | 240 | 325 | 385 | 201 | 215 | 240 | 325 | 385 | |
| D | in. | 3.94 | 3.94 | 5.51 | 7.09 | 7.87 | 3.94 | 3.94 | 5.51 | 7.09 | 7.87 |
| mm | 100 | 100 | 140 | 180 | 200 | 100 | 100 | 140 | 180 | 200 | |
