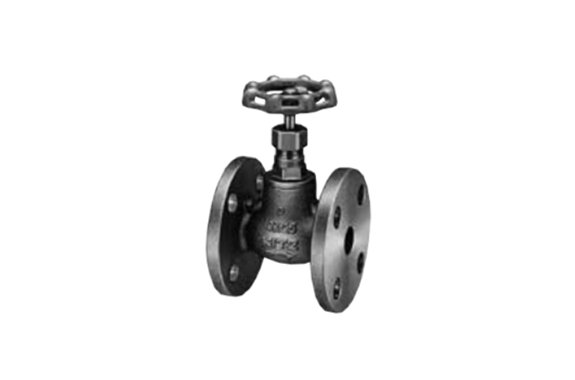

Kitz UDB, UDBM Stainless & High Alloy 10K Globe Valve With PTFE DISC
Manufacturer: Kitz
Model: UDB, UDBM
Structure
Materials
| Parts | UDB | UDBM |
|---|---|---|
| Body | SCS13A | SCS14A |
| Bonnet | SCS13A | SCS14A |
| Stem | 304SS | 316SS |
| Disc | PTFE | |
| Disc holder | 304SS | 316SS |
| Gland | 304SS | 316SS |
| Gland packing | Refer to Page 10 | |
| Packing nut | 304SS | |
| Handwheel | Zinc Diecast (15 & 20) / Aluminum Diecast (25 to 50) / Ductile iron (65 & 80) | |
| Bonnet ring* | Stainless steel | |
| Gasket* | PTFE | |
| Packing washer | 316SS | |
| Name plate | Aluminum | |
*For size 65 and larger
| Face to face dimensions: | JIS B2011 |
|---|---|
| End flange dimensions: | JIS B2220* |
| Wall thickness: | KITZ Std. |
*Except flange thickness
Dimensions
| Nominal Size | 1/2 | 3/4 | 1 | 1¼ | 1½ | 2 | 2½ | 3 | |
|---|---|---|---|---|---|---|---|---|---|
| 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | ||
| L | 85 | 95 | 110 | 130 | 150 | 180 | 210 | 240 | |
| H | 112 | 113 | 143 | 150 | 171 | 189 | 252 | 277 | |
| D | 60 | 70 | 90 | 90 | 100 | 115 | 180 | 225 | |
