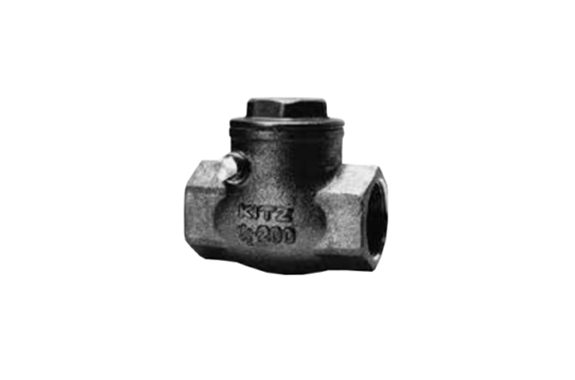

Kitz UO, UOM Stainless & High Alloy 10K Swing Check Valve
Manufacturer: Kitz
Model: UO, UOM
Structure
Materials
| Parts | UO | UOM |
|---|---|---|
| Body | SCS13A | SCS14A |
| Cap | 304SS | 316SS |
| Disc | SCS13A | SCS14A |
| Hinge pin | 304SS | 316SS |
| Plug | 304SS | 316SS |
| Face to face dimensions: | JIS B2011* |
|---|---|
| End thread dimensions: | JIS B0203 |
| Wall thickness: | KITZ Std. |
*KITZ standard for Size 65 and 80
Dimensions
| Nominal Size | 1/2 | 3/4 | 1 | 1¼ | 1½ | 2 | 2½ | 3 | |
|---|---|---|---|---|---|---|---|---|---|
| 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | ||
| L | 65 | 80 | 90 | 105 | 120 | 140 | 180 | 200 | |
| H | 45 | 55 | 61 | 71 | 72 | 81 | 93 | 104 | |
