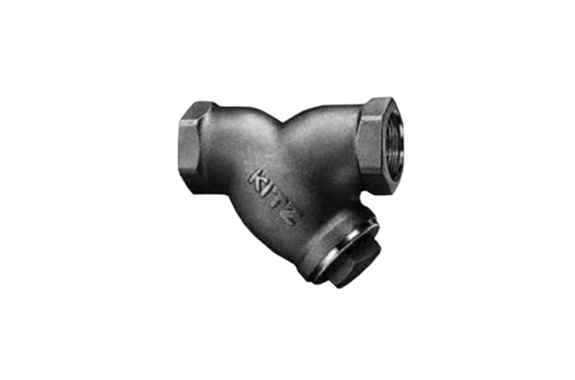

Kitz UY, UYM Stainless & High Alloy 20K Y-Pattern Strainer
Manufacturer: Kitz
Model: UY, UYM
Structure
Materials
| Parts | UY | UYM |
|---|---|---|
| Body | SCS13A | SCS14A |
| Cover | 304SS | 316SS |
| Gasket | Reinforced PTFE | |
| Screen | 304SS | 316SS |
| Cover bolt/nut* | B8/8 | |
| Plug* | 304SS | 316SS |
*For size 65 and larger
Note: Screen is a 40-mesh stainless wire net reinforced with SUS304/316.
| Face to face dimensions: | KITZ Std. |
|---|---|
| End thread dimensions: | JIS B0203 |
| Wall thickness: | KITZ Std. |
Dimensions
| Nominal Size | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1½ | 1½ | 2 | 2½ | 3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | ||
| L | 65 | 70 | 85 | 100 | 115 | 135 | 150 | 180 | 220 | 250 | |
| H1 | 50 | 50 | 58 | 64 | 76 | 89 | 89 | 115 | 156 | 192 | |
| H | 66 | 67 | 79 | 89 | 107 | 127 | 139 | 167 | 214 | 266 | |
| D | 15 | 15 | 18 | 23 | 30 | 39 | 46 | 58 | 72 | 86 | |
| ℓ | 36 | 36 | 43 | 48 | 58 | 69 | 75 | 90 | 120 | 150 | |
| P | — | — | — | — | — | — | — | — | Rc1/2 | Rc1/2 | |
