KITZ

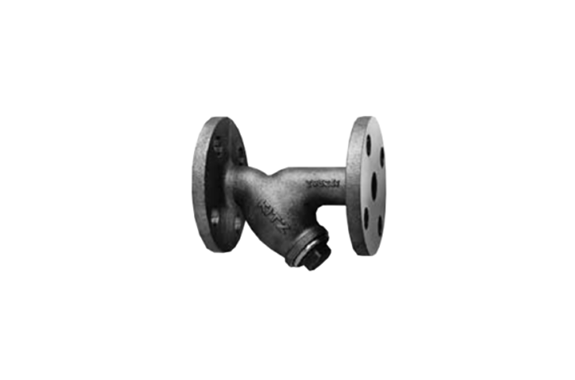

Kitz UYB, UYBM Stainless & High Alloy 10K Y-Pattern Strainer
Manufacturer: Kitz
Model: UYB, UYBM
Structure
Materials
| Parts | UYB | UYBM |
|---|---|---|
| Body | SCS13A | SCS14A |
| Cover | 304SS | 316SS |
| Gasket | Reinforced PTFE | |
| Screen | 304SS | 316SS |
| Face to face dimensions: | KITZ Std. |
|---|---|
| End flange dimensions: | JIS B2220* |
| Wall thickness: | KITZ Std. |
*Except flange thickness
Dimensions
| Nominal Size | 3/8 | 1/2 | 3/4 | 1 | 1¼ | 1½ | 2 |
|---|---|---|---|---|---|---|---|
| 10 | 15 | 20 | 25 | 32 | 40 | 50 | |
| L | 110 | 120 | 130 | 150 | 170 | 190 | 220 |
| H | 50 | 58 | 66 | 78 | 93 | 103 | 121 |
| H1 | 67 | 79 | 91 | 109 | 132 | 144 | 173 |
| D | 15 | 18 | 23 | 30 | 39 | 46 | 58 |
| ℓ | 36 | 43 | 48 | 58 | 69 | 75 | 90 |
