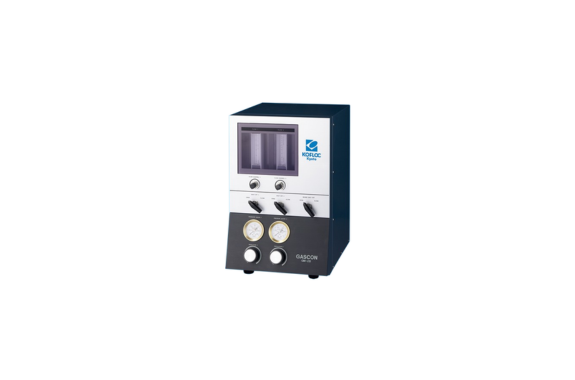

KOFLOC GM Series Gas Mixture Device

Manufacturer: KOFLOC Corp.
Model: GM series

Engineering Devices

We can manufacture various products utilizing the technologies that KOFLOC has cultivated to measure, control and generate fluids. After having discussions with our customers, we make proposals that fulfill their requests and requirements.

Gas Mixers

Gas mixers use various flow components, including mass flow controllers, flow meters, flow control valves, and pressure control valves. By combining these components, the system can set and control two or more gases at specific pressures and flow rates, thereby supplying a stable mixed gas. In addition, gas mixers can be manufactured according to specifications tailored to each customer’s requirements.

GM SERIES

■Fluid：N₂,Air,He,Ar,O₂,CO₂ etc.
■Max.flow rate：Gas　1 line from 10mL/min to 20L/min　/　total 40L/min
■Accuracy：±2%F.S.

Superior stability, repeatability, hermeticity, and temperature characteristics.
Control of minute flows.

Features

Superior stability and repeatability
Excellent airtightness
Good temperature characteristics
Clean gases
Can be used as constant flow controller.
Gas flow can be controlled even at an extremely low flow rate.
Customized specification allows mixture of four or more streams of gases.
(Also available are various other custom specifications according to your needs.)

Standard Specifications

Mixing Method	Flow Rate Ratio Mixing Method
Flow Rate Range	10 ml/min–20 L/min
Applicable Gases	Air, N₂, O₂, He, Ar, CO₂ and other kinds of gas
Accuracy	Within ±2% FS for each element
Material of Gas Contact Part	1. BRASS, NBR, Duracon
Material of Gas Contact Part	2. SUS316, FPM, PCTFE
Operating Temperature Range	5°C–40°C
Operating Pressure Range	49–588 kPa
Pressure Resistance	784 kPa
Piping Connection	Standard PT1/4 Female Screw
Dimension	GM-2B 290W × 440H × 350D (mm)
	GM-3B 360W × 440H × 350D (mm)
	GM-4B 430W × 440H × 350D (mm)
