KOFLOC Corp.

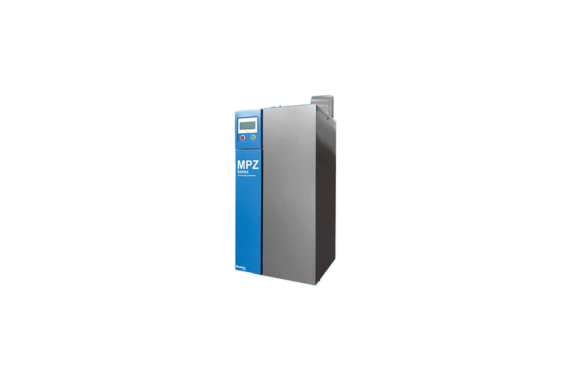

KOFLOC MPZ Series Small Ozone Gas Generator
Manufacturer: KOFLOC Corp.
Model: MPZ series
Gas Generators
We provide products for generating various gases from the air and water around us, such as nitrogen gas, oxygen gas, ozone gas, clean dry air and hydrogen gas generators.
O₃ Gas generators
The ozone gas generator produces ozone gas by extracting concentrated oxygen gas from the air and processing the gas in the silent discharge type ozonizer.
By using concentrated oxygen gas as a raw material with the PSA method, our product has largely suppressed generation of poisonous NOx gas.
MPZ SERIES
MPZ Series concentrates oxygen gas in the air to use it as a raw material for ozone gas with the PSA system, so the generation of poisonous NOx gas is reduces significantly.
Adoption of a multi-layout package makes it possible to select the directions of panel surfaces and exhaust ducts according to installation sites.
With a built-in small-sized compressor, it is possible to move and use this equipment as long as there is AC100V power.
Specifications
| TYPE | MPZ-1A | MPZ-1B | MPZ-1C | MPZ-2A | PZ-3A*4 | |
|---|---|---|---|---|---|---|
| Generating Volume*1 | g/h | 3 | 5 | 8 | 10 | 30 |
| Generating Concentration | g/Nm³ | 12.5 | 21 | 34 | 42 | 63 |
| PSA Oxygen Flow Rate | NL/min | 4 | 8 | |||
| Pressure | MPa | MAX 0.05 | ||||
| Surrounding Temperature | °C | 5–35°C | ||||
| Device Dimensions (W × D × H)*2 | mm | 430 × 700 × 800 or 700 × 430 × 800 | 650 × 700 × 1460 | |||
| Device Weight (Approx.) | kg | 90 | 240 | |||
| Electricity Consumption | kW | 0.53 | 0.56 | 0.59 | 0.62 | 1.7 |
| Power Supply Voltage | V/Hz | AC100 1Φ 50/60Hz*3 | AC200 1Φ 50/60Hz | |||
| Cooling Method | Air Cooling Type | |||||
*1 Design conditions are 20°C and 1 ATM.
*2 Dimensions do not include projections and casters.
*3 200V specifications are available as an option.
*4 The PZ-3A chassis differs in appearance from the MPZ series. Also, the multi-layout package is not implemented for PZ-3A.
* For overseas specifications or special specifications not listed in our catalogue, please contact relevant staff at our company.
* Product improvements may lead to specification changes.
