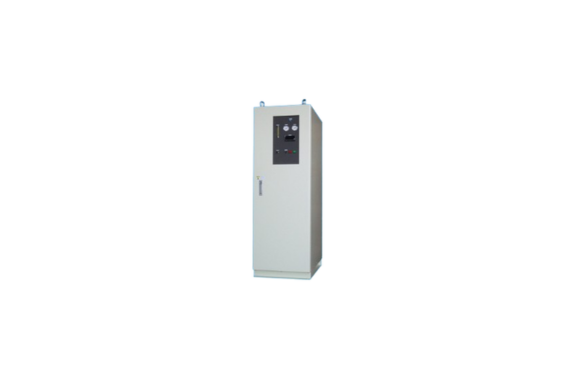

KOFLOC OX Series Medium-Sized Oxygen Gas Generator

Manufacturer: KOFLOC Corp.
Model: OX series

Gas Generators

We provide products for generating various gases from the air and water around us, such as nitrogen gas, oxygen gas, ozone gas, clean dry air and hydrogen gas generators.

O₂ Gas generators

The oxygen gas generator supplies high-purity oxygen gas (90% or higher) by extracting oxygen gas from the air. As compared with methods using cylinders or liquid oxygen, this product, which enables users to obtain oxygen gas onsite, can save the cost and effort of management and operation, and reduce CO₂ emissions associated with transportation.

OX Series

The lineup of generating volumes includes medium-sized oxygen gas generators of 0.7-9.3 N㎥/h. Utilizing air supply from an outside built compressor, it is possible to supply oxygen gas with a pressure of 0.3 MPa. * Other gas pressures are also available, so please contact relevant staff at our company for details. * Class-2 pressure vessels specified in High Pressure Gas Safety Act are out of scope.

TYPE		OX-0.7	OX-1.1	OX-1.8	OX-3.0	OX-3.7	OX-5.6	OX-9.3
Purity	%	≥ 90
Generating Volume*1	Nm³/h	0.7	1.1	1.8	3	3.7	5.6	9.3
Pressure	MPa	0.3
Device Dimensions	mm	470 × 620 × 1210		550 × 950 × 1750		800 × 950 × 1750		1050 × 950 × 1750
Device Weight (Approx.)	kg	120	130	270	300	400	450	630
Power Supply Voltage	V	AC100 1Φ 50/60Hz
Compatible Compressor Output	kW	1.5	2.2	3.7	5.5	7.5	11	15

*1 Values obtained under environmental conditions of 20°C surrounding temperature and 60% relative humidity (RH) are converted for atmospheric pressure of 0°C. The amount of gas that can be produced may decrease due to surrounding temperature and humidity.

* For overseas specifications or special specifications not listed in our catalogue, please contact relevant staff at our company.

* Product improvements may lead to specification changes.
