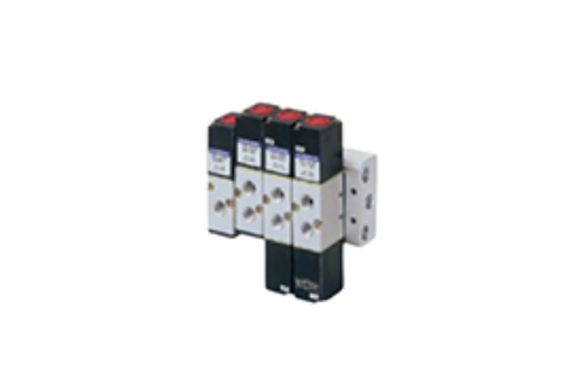

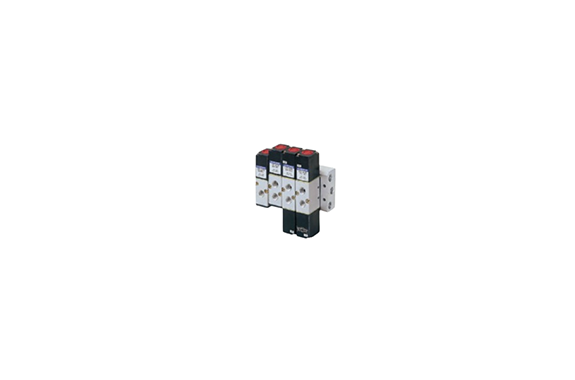

Koganei 200 Series Solenoid Valves

Manufacturer: KOGANEI CORPORATION
Model: 200 Series

Features

This solenoid valve, available in 2, 3, or 5-port configurations, excels in controlling operations for cylinders with diameters ranging from 32 mm (1.260 in) to 80 mm (3.150 in). Additionally, it can function as a low-pressure specification actuator, providing versatility and efficiency across multiple applications.

Specifications

Item	Basic model
Item	CS-200E1	CS-200-4E1	CS-200-4E2	CS-A200E1	CS-A200-4E2
For direct piping, F, T type manifolds	Single unit for mounting sub-base, A type manifold
Number of positions	2 positions	2 positions	5 ports	3 positions	3 positions
Number of ports	2, 3 ports	5 ports	5 ports	3 positions	3 positions
Valve function	Normally closed (NC) or Normally open (NO, optional)	Single solenoid	Double solenoid	Closed center (standard), Exhaust center or pressure center (optional)	Closed center (standard), Exhaust center or pressure center (optional)
Media	Air	Air	Air	Air	Air
Operation type	Direct acting type	Direct acting type	Direct acting type	Direct acting type	Direct acting type
Effective area (Cv)	8.5 [0.47]	7.5 [0.42]	6.5 [0.36]	7.5 [0.42]	7.5 [0.42]
Port size	Rc1/4	Rc1/4	Rc1/4	Rc1/4	Rc1/4
Lubrication	Not required	Not required	Not required	Not required	Not required
Operating pressure range	0~0.9 MPa [0~131 psi]	0~0.7 MPa [22~102 psi]	0~0.7 MPa [22~102 psi]	0~0.7 MPa [22~102 psi]	0~0.7 MPa [22~102 psi]
Proof pressure	1.35 [196 psi]	1.05 [152 psi]	1.05 [152 psi]	1.05 [152 psi]	1.05 [152 psi]
Response time	DC24V: 20/20 ms, AC100V, AC200V: 20/20 ms or below	15/25 ms or below	15/25 ms or below	15/25 ms or below	20/20 ms or below
ON/OFF	DC24V: 20/20 ms, AC100V, AC200V: 20/20 ms or below	20/20 ms or below	20/20 ms or below	20/20 ms or below	20/20 ms or below
Maximum operating frequency	5 Hz	5 Hz	5 Hz	5 Hz	5 Hz
Minimum time to energize for self holding	–	–	–	50 ms	–
Operating temperature range (atmosphere and media)	5~50°C [41~122°F]	5~50°C [41~122°F]	5~50°C [41~122°F]	5~50°C [41~122°F]	5~50°C [41~122°F]
Shock resistance	Lateral direction: 588.4 m/s² [60 G]	Lateral direction: 392.3 m/s² [40 G]	Axial direction: 294.2 m/s² [30 G]	Axial direction: 588.4 m/s² [60 G]	Axial direction: 588.4 m/s² [60 G]
Mounting direction	Any	Any	Any	Any	Any
