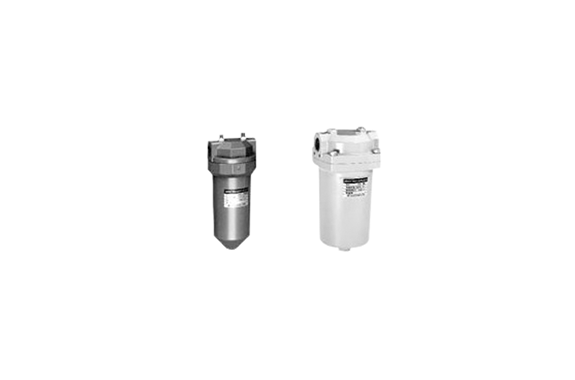

Koganei Activated Charcoal Filters KKF Series

Manufacturer: KOGANEI CORPORATION

Features

Eliminate odors effectively by using activated charcoal for absorption. The activated charcoal layer, with its large absorption surface area (1000 cm²/g), ensures long-lasting and high absorption effectiveness.

Additionally, this filter can be installed upstream or downstream of micro mist filters. This strategic placement removes oil vapors and other odors, ultimately contributing to the creation of clean air for optimal performance.

Specifications

Item	Model	KKF-150	KKF-200
Media		Air
Operating pressure range	MPa [psi]	0.05～0.97 [7～141]	0.05～0.97 [7～141]
Operating temperature range	°C [°F]	5～60 [41～140]	5～60 [41～140]
Intake air temperature range	°C [°F]	5～60 [41～140]	5～60 [41～140]
Connection port		Rc1/2	Rc3/4
Volume of processed air*	ℓ/min [ft³/min] (ANR)	1.0 [35.3]	1.65 [58.2]
Filtering method		Absorption by activated charcoal
Filtering efficiency (residual oil)	ppm mg/m³	Initial stage: 0.1	Initial stage: 0.1
Pressure loss	MPa [psi]	0.05 [7]	0.05 [7]
Element operating life		Change at 1500 hours or six months whichever comes first
External dimensions	Dimension between flats × total length	90 × 218 [3.54 × 8.58]	115 × 231 [4.53 × 9.09]
Mass	kg [lb.]	1.0 [2.2]	1.7 [3.7]
Painting (Munsell No.)		Baked finish with acrylic resin (7.5GY5/2)	Baked finish with melamine resin (5GY8/5.0/5)
Filter element	Model	EK-150-A	EK-200-C
	Quantity	1	1
