KOGANEI CORPORATION

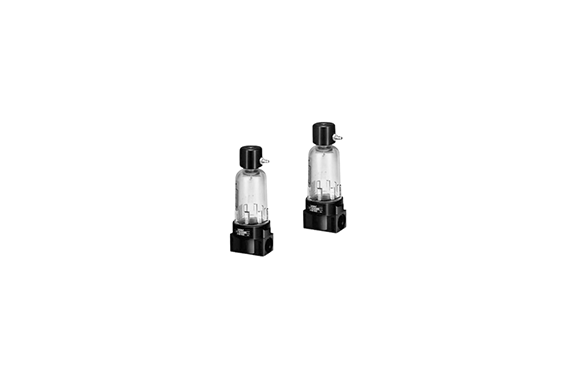

Koganei Air Bleeders
Manufacturer: KOGANEI CORPORATION
Features
This unit effectively removes air bubbles that accumulate inside the piping of low-pressure hydraulic circuits, ensuring stable speed control. Additionally, the transparent body provides a quick visual confirmation of any air bubble occurrence, making it easier to monitor.
Moreover, the push-type air bleeder button simplifies handling, allowing for quick and easy maintenance. To further protect the surrounding areas, the bleed port is equipped with a fitting that prevents contamination.
Specifications
| Item | Model |
|---|---|
| AHB150-□ | – |
| Maximum operating pressure | MPa [psi]: 0.9 [131] |
| Proof pressure | MPa [psi]: 1.3 [189] |
| Operating temperature range | °C [°F]: 5 ~ 60 [41 ~ 140] |
| Mass | g [oz.]: 160 [5.64] |
| Materials | Body: Polycarbonate Piping part: Aluminum die-casting |
