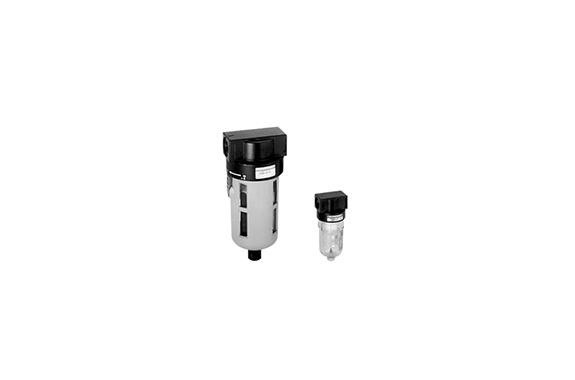

The 5µm element of this system effectively minimizes pressure loss, ensuring optimal performance. Additionally, the click-on bowl is designed for ease of use, making it simple to attach and remove. For added convenience, the drain cock, along with fittings and an auto-drain type drain cock, are available as optional components.
Specifications
| Item | Model | F150 | F300 | F600 |
|---|---|---|---|---|
| Media | Rc | 1/8, 1/4 | Air | 1/4, 3/8, 1/2 |
| Filtration rating | µm | 5 | 5 | 5 |
| Maximum operating pressure | MPa [psi] | 0.93 [135] | 0.93 [135] | 0.93 [135] |
| Proof pressure | MPa [psi] | 1.47 [213] | 1.47 [213] | 1.47 [213] |
| Operating temperature range (atmosphere and media) | °C [°F] | 5~60 [41~140] | 5~60 [41~140] | 5~60 [41~140] |
| Drain capacity | cc [in³] | 15 [0.92] | 55 [3.36] | 90 [5.49] |
| Mass | kg [lb] | Standard: 0.14 [0.31], Auto drain type: 0.15 [0.33] | Standard: 0.33 [0.73], Auto drain type: 0.36 [0.79] | Standard: 0.41 [0.90] |
| Materials | Body | Aluminum die-casting | Zinc die-casting | Aluminum die-casting |
| Bowl | Polycarbonate | Polycarbonate | Polycarbonate | |
| Standard attachments | Push type drain cock | Screw type drain cock, bowl guard | Screw type drain cock, bowl guard |
