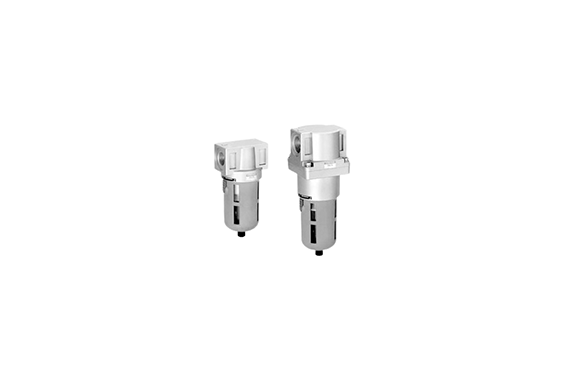

Koganei Air Filters FN650, FN900, FN901
Manufacturer: KOGANEI CORPORATION
Features
This high-capacity filter efficiently handles a process flow rate of 3000 ?/min or 6000 ?/min. Moreover, it provides excellent filtration, ensuring that operations run smoothly and reliably. As a result, it offers increased capacity for demanding applications, enhancing overall performance and productivity.
Specifications
| Item | Series | Model | FN650 | FN900 | FN901 |
|---|---|---|---|---|---|
| Media | Rc | Air or non-corrosive gas | Air or non-corrosive gas | Air or non-corrosive gas | |
| Filtration rating | µm | 5 | 5 | 40 | |
| Max. operating pressure | MPa [psi] | 0.97 [141] | 0.93 [135] | 0.97 [141] | |
| Proof pressure | MPa [psi] | 1.47 [213] | 1.47 [213] | 1.47 [213] | |
| Max. processed flow rate | ℓ/min [ft³/min] (ANR) | 3000 [106] | 6000 [212] | 6000 [212] | |
| Operating temperature range | °C [°F] | 5~60 [41~140] | 5~60 [41~140] | 5~60 [41~140] | |
| Drain capacity | cc [in³] | 90 [5.5] | 130 [7.9] | 130 [7.9] | |
| Mass | kg [lb] | Standard: 0.58 [1.28], Auto drain type: 0.61 [1.35] | Standard: 1.11 [2.45], Auto drain type: 1.14 [2.51] | Standard: 1.11 [2.45], Auto drain type: 1.14 [2.51] | |
| Materials | Body | Aluminum die-casting | Aluminum die-casting | Aluminum die-casting | |
| Skirt part | — | — | — | ||
| Bowl | Polycarbonate | Polycarbonate | Polycarbonate | ||
| Element | PE | PP | PP | ||
| Standard attachments | Bowl guard, screw type drain cock | Bowl guard, screw type drain cock | Bowl guard, screw type drain cock |
