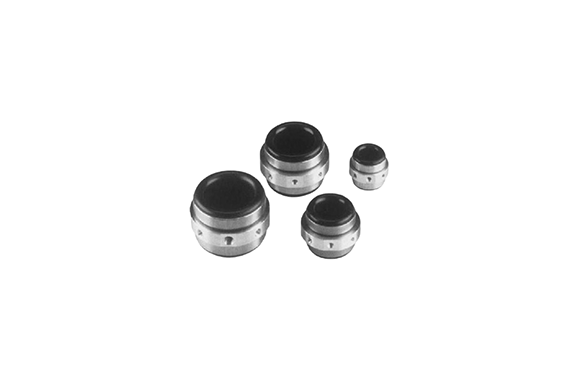

Koganei Air Gripper

Koganei Air Gripper

Manufacturer: KOGANEI CORPORATION

Features

AIR PICKERS and AIR GRIPPERS are innovative pneumatic devices. They securely hold the workpiece gently, with a wider contact area. This design eliminates damage during processing, making them especially suitable for handling soft or fragile objects.

Holding Workpieces Gently and Securely
The rubber tube inflates to securely grip the workpiece. This provides a wider contact area, preventing damage during handling. Consequently, these devices are ideal for delicate or fragile materials.
Handling Workpieces with Multiple Diameters
The tube inflates evenly around the body of the AIR PICKER and AIR GRIPPER. As a result, they can hold workpieces of various diameters with the same model. Unlike conventional grippers, there is no need for part replacements to accommodate different object sizes.
Lightweight and Simple Construction
AIR PICKERS and AIR GRIPPERS are lightweight compared to conventional grippers. This allows them to carry loads 25 to 100 times their own weight, providing a reliable and efficient solution for heavy-duty applications.

Specifications

	G***GCF	G***GSFX100	G***GCFX200
Max Operating Air Pressure MPa / psi	0.15 / 21.8	0.1 / 14.5	0.15 / 21.8
Body Material	Aluminum (Alumite)	Aluminum (Alumite)	Aluminum (Alumite)
Rubber Bladder Material	Chloroprene	Silicone	Chloroprene
Fabric Reinforcement	None	None	None

Part Number	Former Part Number (Firestone)	Workpiece Outside Diameter mm	Recommended Handing Load* g	A mm	B mm	C mm	D mm	E mm	F1	G	Mass g
G020GCF	WP1M585001	5～15 [0.197～0.591]	1400 [49.4]	19	33	40	36	10	M5	M5	60 [2.12]
G030GCF	WP1M585002	10～25 [0.394～0.984]	3800 [133.9]	27	48	60	48	13	M6	M6	145 [5.11]
G040GCF	WP1M585003	15～35 [0.591～1.378]	6000 [211.6]	37	58	70	52	14	M6	M6	210 [7.41]
G050GCF	WP1M585004	20～45 [0.787～1.772]	9000 [317.0]	48	69	80	56	15	M8	Rc 1/8	285 [10.05]
G020GSFX100	WP1M585005	5～15 [0.197～0.591]	400 [14.1]	19	33	40	36	10	M5	M5	60 [2.12]
G030GSFX100	WP1M585006	10～25 [0.394～0.984]	1200 [42.3]	27	48	60	48	13	M6	M6	130 [4.59]
G040GSFX100	WP1M585007	15～35 [0.591～1.378]	1800 [63.5]	37	58	70	52	14	M6	M6	210 [7.41]
G050GSFX100	WP1M585008	20～45 [0.787～1.772]	2600 [91.7]	48	69	80	56	15	M8	Rc 1/8	260 [9.17]
G020GCFX200	WP13587000	5～15 [0.197～0.591]	1400 [49.4]	19	33	40	36	10	M5	M5	60 [2.12]
G030GCFX200	WP13587001	10～25 [0.394～0.984]	3800 [133.9]	27	48	60	48	13	M6	M6	145 [5.11]
G040GCFX200	WP13587002	15～35 [0.591～1.378]	6000 [211.6]	37	58	70	52	14	M6	M6	210 [7.41]
G050GCFX200	WP13587003	20～45 [0.787～1.772]	9000 [317.0]	48	69	80	56	15	M8	Rc 1/8	285 [10.05]
