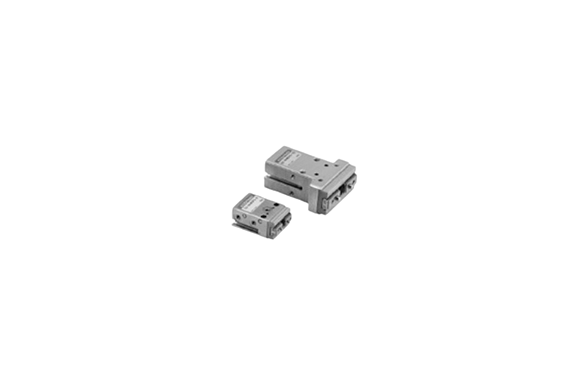

Koganei Air Hands NHB Series Parallel Type Linear Guide Specification Double Acting Type
Manufacturer: KOGANEI CORPORATION
Features
The cylinder bore ranges from Φ8 to 20 mm [0.315 to 0.787 in], designed to meet cleanroom specifications. This air hand features a linear guide, providing precise and smooth operation. As a result, it ensures high reliability and efficiency in environments where space and performance are critical. Additionally, its cleanroom compatibility makes it ideal for applications requiring both compact size and exceptional functionality.
Specifications
| Item | Basic model | |||
|---|---|---|---|---|
| CS-NHBDPG-8 | CS-NHBDPG-10 | CS-NHBDPG-16 | CS-NHBDPG-20 | |
| Cylinder bore size mm [in.] | 8 [0.315] | 10 [0.394] | 16 [0.630] | 20 [0.787] |
| Operating type | Double acting type | |||
| Media | Air | |||
| Operating pressure range | 0.22～0.7 MPa [32～102 psi] | 0.2～0.7 MPa [29～102 psi] | 0.12～0.7 MPa [17～102 psi] | 0.1～0.7 MPa [15～102 psi] |
| Proof pressure | 1.05 MPa [152 psi] | 1.05 MPa [152 psi] | 1.05 MPa [152 psi] | 1.05 MPa [152 psi] |
| Operating temperature range | 0～60°C [32～140°F] | 0～60°C [32～140°F] | 0～60°C [32～140°F] | 0～60°C [32～140°F] |
| Maximum operating frequency | 120 cycle/min | |||
| Lubrication | Not required | |||
| Effective gripping force | Closed side: 5.8 [1.30] | Closed side: 9.4 [2.11] | Closed side: 26.4 [5.93] | Closed side: 45.0 [10.12] |
| (F) Note 1 | Open side: 9.9 [2.21] | Open side: 14.7 [3.30] | Open side: 39.2 [8.71] | Open side: 59.8 [13.44] |
| Lever open/closed stroke | 4 [0.157] | 6.5 [0.256] | 10 [0.394] | 14 [0.551] |
| Repeatability | ±0.01 [±0.0004] | |||
| Port size | M5×0.8 | |||
| Mass | 24 [0.85] (91 [3.21]) | 80 [2.82] (91 [3.21]) | 159 [5.61] (178 [6.28]) | 329 [11.60] (355 [12.52]) |
