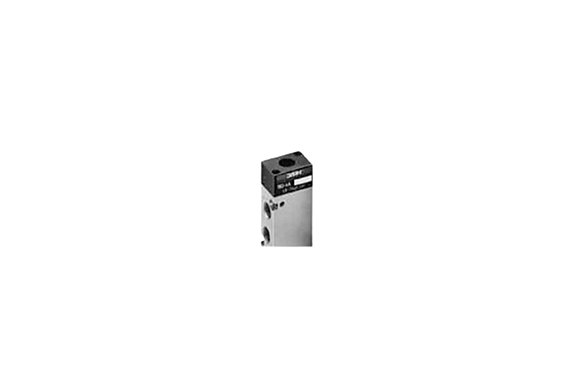

Koganei Air-Piloted Valve 180-4A Series
Manufacturer: KOGANEI CORPORATION
Features
This air valve is the ideal choice for both master and pilot valves. As a result, it provides total pneumatic control. Additionally, it ensures reliable performance across various systems. Moreover, it helps streamline operations and improve efficiency.
Specifications
| Item | Basic model | For direct piping, F type manifold | For sub-base, A type, AJ type manifolds | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | 180-4A | 180-4A2 | 180-4A | A180-4A2 | A180-4A | A180-4A2 | |||
| Media | Air | ||||||||
| Operation type | Air piloted type | ||||||||
| Number of positions and ports | 2 positions, 5 ports | 2 positions, 5 ports | 2 positions, 5 ports | 2 positions, 5 ports | 2 positions, 5 ports | 2 positions, 5 ports | |||
| Effective area (Cv) mm² | 10.2 (0.567) | 10.2 (0.567) | 10.2 (0.567) | 5.0 (0.283) | 5.0 (0.283) | 5.0 (0.283) | |||
| Port size | Rc1/8 | Rc1/8 | |||||||
| Lubrication | Not required | ||||||||
| Operating pressure range (MPa [kgf/cm²] [psi]) | 0.15~0.7 [1.5~7.1] [22~102] | 0~0.7 [0~7.1] [0~102] | |||||||
| Proof pressure (MPa [kgf/cm²] [psi]) | 1.05 [10.7] [152] | ||||||||
| Operating temperature range (atmosphere and media) (°C [°F]) | 5~50 [41~122] | ||||||||
| Shock resistance (m/s² [G]) | 1373.0 (140.0) (Axial direction 294.2 (30.0)) | 294.2 (30.0) | |||||||
| Mounting direction | Any | ||||||||
| Maximum operating frequency (Hz) | 5 | ||||||||
| Mass (g [oz.]) | 70 [2.47] | 80 [2.82] | 80 [2.82] | 82 [2.89] | 82 [2.89] | 82 [2.89] | |||
