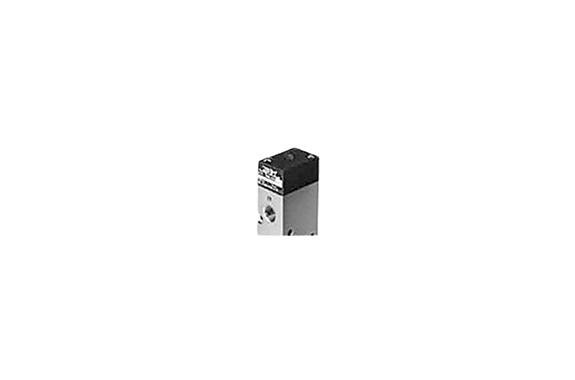

Koganei Air-Piloted Valve 300-4A Series
Manufacturer: KOGANEI CORPORATION
Features
This air valve serves as the ideal choice for both master and pilot valves, ensuring complete pneumatic control. Additionally, it enhances the overall performance of pneumatic systems by providing efficient and reliable operation. Therefore, it is essential for optimizing the control of various applications.
Specifications
| Item | Basic Model | For direct piping, F type manifold | For sub-base, A type and B type manifolds | |||
|---|---|---|---|---|---|---|
| Model | 300-4A | 300-4A2 | A300-4A | A300-4A2 | ||
| Media | Air | |||||
| Effective area (Cv) mm² | 25 (1.39) | 25 (1.39) | 25 (1.39) | 25 (1.39) | ||
| Port size | Main: Rc1/4 or Rc3/8 (3 (R2), 5 (R1) ports: Rc1/4) | Main: Rc1/4 or Rc3/8 (3 (R2), 5 (R1) ports: Rc1/4) | Main: Rc1/4 or Rc3/8 (3 (R2), 5 (R1) ports: Rc1/4) | Main: Rc1/4 or Rc3/8 (3 (R2), 5 (R1) ports: Rc1/4) | ||
| Pilot | Pilot: Rc1/8 | |||||
| Lubrication | Not required | |||||
| Operating pressure range (MPa [kgf/cm²] [psi]) | Main: 0.1~0.9 [1.0~9.2] [15~131] | Main: 0.1~0.9 [1.0~9.2] [15~131] | Main: 0.1~0.9 [1.0~9.2] [15~131] | Main: 0.1~0.9 [1.0~9.2] [15~131] | ||
| Proof pressure (MPa [kgf/cm²] [psi]) | 1.35 [13.8] [196] | |||||
| Operating temperature range (atmosphere and media) (°C [°F]) | 5~50 [41~122] | |||||
| Shock resistance (m/s² [G]) | Lateral direction: 1373.0 (140.0) | Vertical direction: 294.2 (30.0) | Lateral direction: 1373.0 (140.0) | Vertical direction: 294.2 (30.0) | ||
| Mounting direction | Any | |||||
