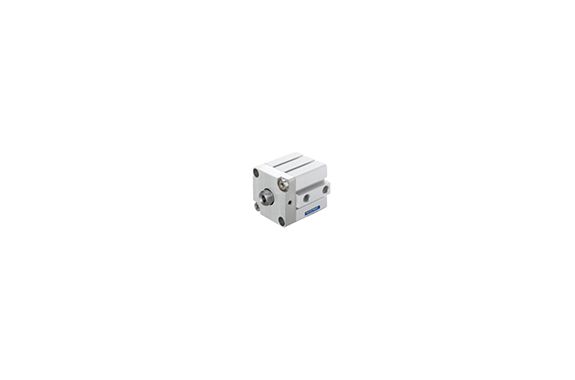

Koganei Basic Jig Cylinders Clean C Series Double Acting Type

Manufacturer: KOGANEI CORPORATION

Features

The cylinder bore size ranges from Φ12 to 50 mm [0.472 to 1.969 in]. The Jig Cylinder C Series is specifically designed with cleanroom specifications, featuring a short, thin body that is optimized for total space-saving. As a result, this design maximizes efficiency and offers an ideal solution where space is limited, ensuring both compactness and high performance.

Specifications

Item	Bore size mm [in.]
Item	12 [0.472]	16 [0.630]	20 [0.787]	25 [0.984]	32 [1.260]	40 [1.575]	50 [1.969]
Operating type	Double acting type
Media	Air
Operating pressure range	0.1～1.0 MPa [15～145 psi]	0.1～1.0 MPa [15～145 psi]	0.05～1.0 MPa [7～145 psi]	0.1～1.0 MPa [15～145 psi]	0.1～1.0 MPa [15～145 psi]	0.05～1.0 MPa [7～145 psi]
Proof pressure	1.5 MPa [218 psi]	1.5 MPa [218 psi]	1.5 MPa [218 psi]	1.5 MPa [218 psi]	1.5 MPa [218 psi]	1.5 MPa [218 psi]
Operating temperature range	0～60°C [32～140°F]	0～60°C [32～140°F]	0～60°C [32～140°F]	0～60°C [32～140°F]	0～60°C [32～140°F]	0～60°C [32～140°F]
Operating speed range	30～500 mm/s [1.2～19.7 in./sec]	30～500 mm/s [1.2～19.7 in./sec]	30～500 mm/s [1.2～19.7 in./sec]	30～500 mm/s [1.2～19.7 in./sec]	30～500 mm/s [1.2～19.7 in./sec]	30～500 mm/s [1.2～19.7 in./sec]
Cushion	Rubber bumper (Optional)
Lubrication	Not required
Port size	M5×0.8	Rc1/8	Rc1/8	Rc1/8	Rc1/8	Rc1/4
