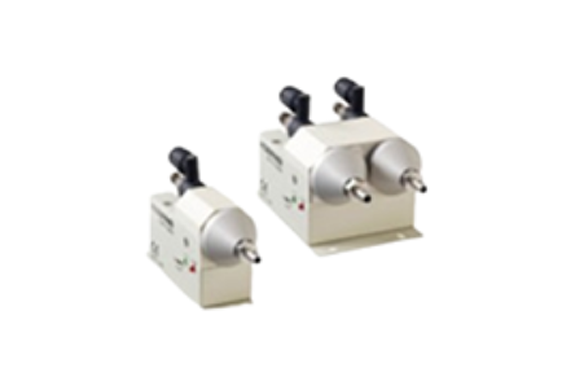

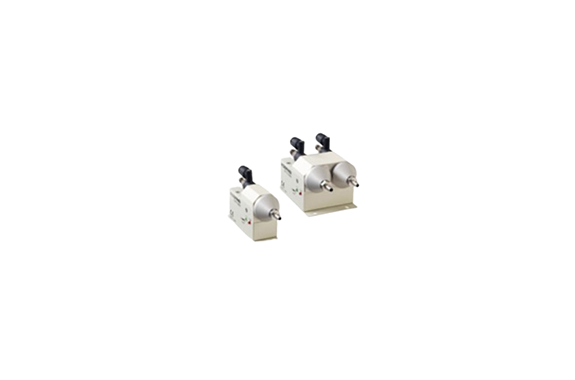

Koganei Blow Type 1-Head, 2-Head Type ELB Series
Manufacturer: KOGANEI CORPORATION
Features
Optimized Ion Distribution: To begin with, the high-frequency AC system enables an outstanding ion balance for stable operations. Consequently, this technology ensures that the device maintains a neutral electrical state across diverse workpieces.
Exceptional Versatility: Furthermore, the series supports a wide array of nozzle types, with up to 31 variations available to meet specific industrial needs. Therefore, the hardware effectively handles charge removal ranging from pinpoint targets to wide area workpieces.
Advanced Cleanroom Engineering: Additionally, the specialized Low Particle Generation type (DTY-ELK01-L) employs charge removal needles made of special alloys. Because of this material choice, the unit dramatically reduces dust generation during discharge. As a result, this specification remains perfect for use in sensitive clean environments.
Air-Saving Innovation: Moreover, the Air Saving type (DTY-ELK01-S) utilizes a unique design that sucks in outside air to assist with blowing. In turn, this feature reduces air consumption by approximately 40% compared to previous models while maintaining high static charge removal performance.
Efficient Maintenance: Similarly, the equipment features a simple connection and disconnection mechanism for the charge removal needle unit. Specifically, the one-touch discharge needle unit allows for quick detachment and attachment during routine cleaning.
Integrated Safety Monitoring: Finally, every unit in the series remains fully CE marking compliant to meet international safety standards. To assist the operator, high-visibility LED indicators provide real-time updates on power status, high-voltage output, and potential discharge alarms.
Specifications
| Item \ Model | DTRY-ELB01 (Main Unit for 1-head Type) | DTRY-ELB02 (Main Unit for 2-head Type) | DTRY-ELL01 (Main Unit for 1-head Type) | |
|---|---|---|---|---|
| Power supply | 24 VDC ± 5% | |||
| Consumption current mA | Approx. 100 | |||
| Output voltage kV | Approx. 2 (High frequency type) | |||
| Indicator LED | Power supply | While power is supplied, power indicator LED (Green) turns on. | ||
| Abnormality | When an abnormal discharge occurs, the abnormality indicator LED (Red) turns on. | |||
| Power safety circuit | The contact point output NO/NC is selectable when an abnormal discharge occurs.Note 1 (24 VDC 50 mA Max.) | The contact point output NO/NC is selectable when an abnormal discharge occurs.Note 1 (24 VDC 50 mA Max.) | ||
| Outer dimensions mm | 92(L)×30(W)×54(H) (Main unit only) | 92(L)×62(W)×54(H) (Main unit only) | 65(L)×25(W)×47(H) (Main unit only) | |
| Mass g [oz.] | 190 [6.70] (Main unit only) | 300 [10.58] (Main unit only) | 122 [4.30] (Main unit only) | |
| Ion balanceNote 2 V | ± 15 | |||
| Ozone generation amount ppm | 0.037 or less (When measured at 300 mm apart from the nozzle outlet with a standard nozzle and 0.25 MPa air at primary side.) | |||
| MediaNote 3 | Air (vapor- and oil-removed clean air) | |||
| Supply air flow rate ℓ/min(ANR) | Approx. 100 (with DTRY-NZR01NS nozzle and 0.15 MPa air at primary side, per head.) | Approx. 50 (with DTRY-NZL01NS nozzle and 0.1 MPa air at primary side) | ||
| Operating air pressure range MPa [psi.] | 0.02 ~ 0.25 [3 ~ 36] (with DTRY-NZR01NS nozzle) 0.02 ~ 0.12 [3 ~ 17] (with DTRY-NZR02S nozzle) 0.02 ~ 0.12 [3 ~ 17] (with conductive urethane, Teflon or silicone tube) 0.05 ~ 0.25 [7 ~ 36] (with DTRY-NZR100ND ~ 500ND nozzles) 0.05 ~ 0.40 [7 ~ 58] (with DTRY-NZR20SW nozzle) 0.05 ~ 0.40 [7 ~ 58] (with DTRY-NZR21SW nozzle) 0.05 ~ 0.40 [7 ~ 58] (with DTRY-NZR01FT nozzle) 0.05 ~ 0.40 [7 ~ 58] (with DTRY-NZR200SP nozzle) 0.05 ~ 0.40 [7 ~ 58] (with DTRY-NZR100B ~ 500B nozzles) 0.05 ~ 0.40 [7 ~ 58] (with DTRY-NZR100L ~ 200L nozzles) 0.05 ~ 0.40 [7 ~ 58] (with DTRY-NZR100U nozzle) 0.05 ~ 0.40 [7 ~ 58] (with DTRY-NZR100FMT ~ 200FMT nozzles) | 0.05 ~ 0.5 [7 ~ 73] | ||
| Operating ambient temperature °C [°F] | 0 ~ 40 [32 ~ 104] indoor (avoid a place subject to dew condensation) | |||
| Accessories | 1 pc. power and signal cable (2 m), 1 pc. ground wire (2 m), and 1 pc. contact point selector protection sticker | 1 pc. power and signal cable (2 m), 1 pc. bracket, and 1 pc. contact point selector protection sticker | ||
