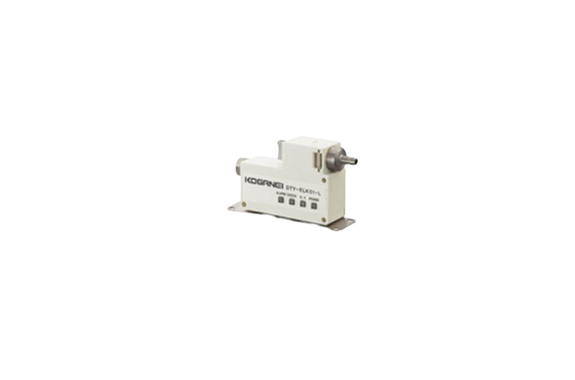

Koganei Blow Type Low Dust Emission Type ELK Series

Manufacturer: KOGANEI CORPORATION

Features

Superior Ion Balance: To begin with, the high-frequency AC type system enables an outstanding ion balance. Consequently, this technology ensures stable performance during operation.
Flexible Application: Furthermore, a wide array of nozzle types allows for diverse applications. Because of this variety, the device handles charge removal ranging from pinpoint targets to wide area workpieces.
Cleanroom Compatibility: Additionally, the charge removal needle employs special alloys. As a result, this specification dramatically reduces dust generation, which makes it perfect for use in clean environments.
Simplified Maintenance: Moreover, the design features a simple needle unit connection and disconnection system. Therefore, users can perform quick detachment, attachment, and general maintenance.
Safety Standards: Finally, the entire series remains CE marking compliant to ensure industrial safety.

Item \ Model		DTY-ELK01 (Standard Type)	DTY-ELK01-S (Low Air Consumption Type)	DTY-ELK01-L (Low Particle Generation Type)
Power supply		24VDC ±5%
Consumption current	mA	Approximately 70
Output voltage	kV	Approximately 2 (high-frequency type)
Indicators	POWER LED (green)	Lights while power is on
	H.V LED (blue)	Lights during discharge
	CHECK LED (yellow)	Lights when a discharge abnormality occurs (H.V LED off)
	ALARM LED (red)	Lights when a machine abnormality occurs (H.V LED off)
Output		Contact output when CHECK LED or ALARM LED is lighted (24VDC 50 mA MAX. open drain)
Ionizer ON/OFF control input		Discharge stop by short circuit with 0V (no voltage input, internal drop voltage of 0.5V or less)
Ion balance	V	Within ±15 (standard nozzle; 50 mm [2 in.] from nozzle tip; supply air pressure: 0.3 MPa [44 psi.])
Static charge removal time^{Note 1}	seconds	0.5 or less	0.8 or less	0.5 or less
Ozone generation amount	ppm	0.03 or less (standard nozzle; 300 mm [11.8 in.] from nozzle tip; supply air pressure: 0.3 MPa [44 psi.])
Particle generation amount^{Note 2}	particles	—	—	50 or less
Medium		Air (clean air, water vapor and oil removed)
Operating air pressure range	MPa [psi.]	0.05 ~ 0.5 [7 ~ 73]
Expended air flow rate^{Note 3}	ℓ/min [ft³/min] (ANR)	260 [9.2]	60 [2.1]	260 [9.2]
Mass	g [oz.]	60 [2.12]^{Note 4}	75 [2.65]^{Note 5}	66 [2.33]^{Note 4}
Operating environment		Indoors: 0 to 40°C [32 to 104°F], 15 to 65% RH (non-condensation)
Accessories		Power and signal cable (2 meters), bracket
