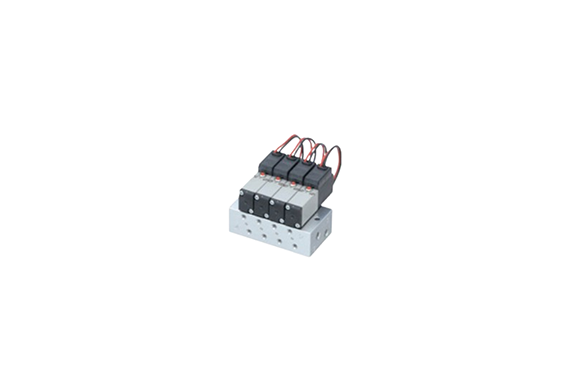

This electro-pneumatic relay is ideal for controlling operation in single-acting cylinders with diameters ranging from 2.5 to 10 mm [0.098 to 0.394 in]. It ensures precise and efficient control, making it the perfect choice for a wide range of applications.
Specifications
| Item | Basic model | For direct piping, F type manifold | For A type manifold |
|---|---|---|---|
| Basic model | CS-010-4E1 | CS-A010-4E1 | |
| Number of positions | 2 positions | 2 positions | |
| Number of ports | 5 ports | 5 ports | |
| Valve function | Single solenoid | Single solenoid | |
| Media | Air | Air | |
| Operation type | Internal pilot type | Internal pilot type | |
| Effective area (Cv) | P→A 0.2 (0.01) | A→R1, B→R2 0.3 (0.02) | |
| Port size | M3 X 0.5 | M3 X 0.5 | |
| Lubrication | Not required | Not required | |
| Operating pressure range (MPa [psi]) | 0.15~0.7 [22~102] | 0.15~0.7 [22~102] | |
| Proof pressure (MPa [psi]) | 1.05 [152] | 1.05 [152] | |
| Response time (ON/OFF) (ms) | DC5V, DC12V 4/8 or below | DC6V, DC24V 4/8 or below | |
| Maximum operating frequency (Hz) | 5 | 5 | |
| Minimum time to energize for self holding (ms) | — | — | |
| Operating temperature range (atmosphere and media) (°C [°F]) | 5~50 [41~122] | 5~50 [41~122] | |
| Shock resistance (m/s² [G]) | 1373.0 [140] (Axial direction 392.3 [40]) | 1373.0 [140] (Axial direction 392.3 [40]) | |
| Mounting direction | Any | Any |
